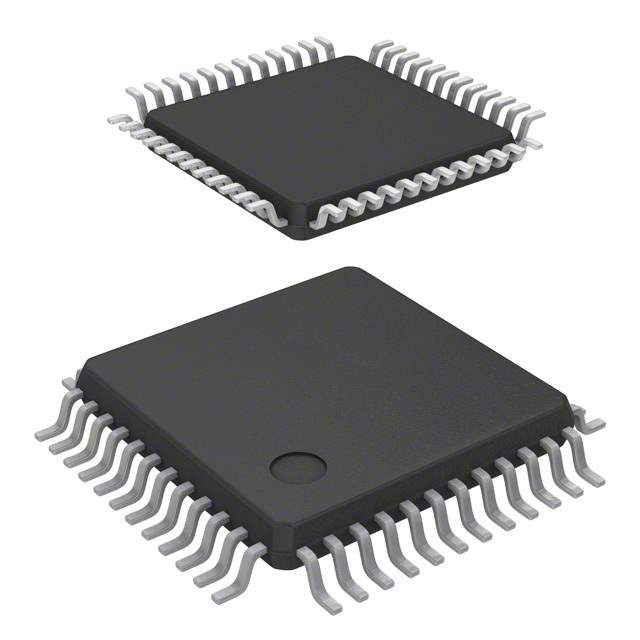

The XRD9816BCV is a complete single-chip 10-bit, 20 MSPS CCD (Charge-Coupled Device) imaging sensor signal processor manufactured by Exar Corporation. It is designed to process the analog signals from a CCD image sensor and convert them into digital data. This integrated solution simplifies the design of imaging systems.

Applications

• Digital Cameras: Used in digital cameras to process the signals from the CCD image sensor and produce digital images.
• Security Cameras: Employed in security cameras to process video signals for surveillance and monitoring.
• Machine Vision Systems: Integrated into machine vision systems for image acquisition and processing in industrial applications.
• Medical Imaging: Utilized in medical imaging equipment for processing images from CCD sensors used in diagnostic procedures.
• Document Scanners: Used in document scanners to process the images captured by the CCD sensor.

Features

• 10-Bit Resolution: Provides high-resolution digital output with 10 bits of gray-scale information.
• 20 MSPS Sampling Rate: Supports a sampling rate of up to 20 million samples per second, enabling high-speed image acquisition.
• Correlated Double Sampling (CDS): Includes CDS circuitry to reduce noise and improve image quality.
• Black Level Clamping: Features black level clamping to ensure accurate black levels in the output image.
• Programmable Gain and Offset: Allows for programmable gain and offset adjustments to optimize image contrast and brightness.
• Single Supply Operation: Operates from a single power supply, simplifying system design.

Benefits

• High Image Quality: Provides high-quality digital images with low noise and accurate color reproduction.
• High Speed: Enables high-speed image acquisition, allowing for real-time video processing.
• Improved Signal-to-Noise Ratio: Reduces noise in the image, improving overall image clarity.
• Accurate Black Levels: Ensures accurate black levels in the output image, improving image contrast.
• Flexible Image Adjustment: Allows for flexible adjustment of image contrast and brightness, optimizing image quality.
• Simplified System Design: Simplifies system design by integrating all necessary functions into a single chip.

Additional Details

The XRD9816BCV requires a stable clock signal for proper operation. The output data is typically provided in a parallel format. It offers features such as gain and offset adjustments to calibrate the sensor and improve picture quality. It minimizes the need for external components, reducing the overall system size and cost. The operating voltage is typically 5V. The digital output can be interfaced with microprocessors or FPGAs for further image processing.
