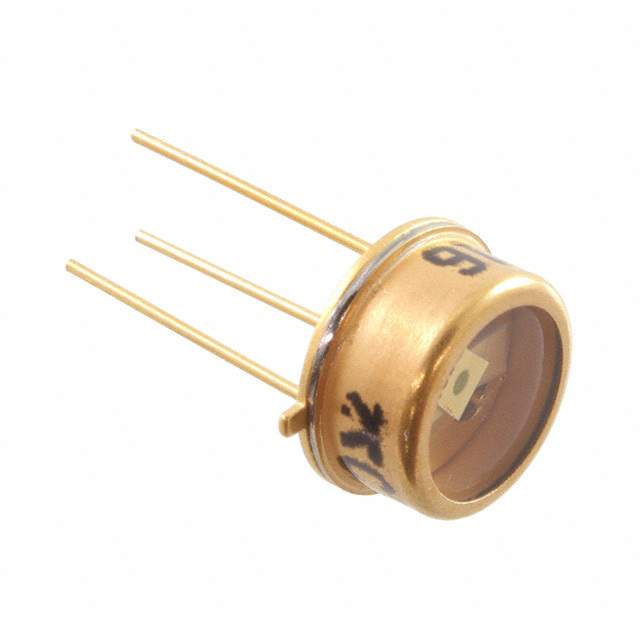

C30954EH Real Image1 C30954EH Real Image2
Same model may have multiple batches, images only for reference.
C30954EH Real Image1 C30954EH Real Image2
C30954EH Real Image1 C30954EH Real Image2
Same model may have multiple batches, images only for reference.

C30954EH

Part No C30954EH
Manufacturer Excelitas Technologies
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 1064NM TO-5  /  Photodiode 1064nm 3ns TO-205AA, TO-5-3 Metal Can
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr Excelitas Technologies
Package Box
Wavelength 1064nm
Diode Type Avalanche
Responsivity @ nm 36 A/W @ 1060nm
Response Time 3ns
Voltage - DC Reverse (Vr) (Max) 475 V
Current - Dark (Typ) 50nA
Active Area 0.50mm²
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Through Hole
Package / Case TO-205AA, TO-5-3 Metal Can
Base Product Number C30954
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.1050
Other Names 1601-1417
Standard Package 50
Win Source Part Number 1211581-C30954EH
Ultra Librarian 3D Model Ultra Librarian C30954EH CAD Model

Description

The Excelitas Technologies electronic component is a sensor/transducer with an optical sensor-photodiode.

  • Product Category: Sensor/Transducer
  • Sensor Type: Optical Sensor-Photodiode
  • Response Time: 3ns
  • Standard Package: 50
  • Diode Type: Avalanche
  • Voltage-DC Reverse (Vr) (Max): 475 V
  • Active Area: 0.50mm²
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 70°C
  • Manufacturer: Excelitas Technologies
  • Win Source Part Number: 1211581-C30954EH
