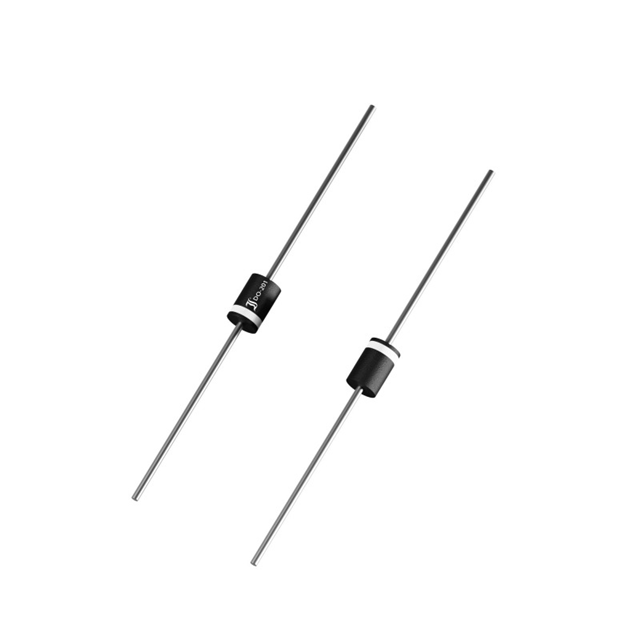

1N5402 Real Image
Same model may have multiple batches, images only for reference.

1N5402

Part No 1N5402
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE GEN PURP 200V 3A DO201AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Packaging Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2V @ 3A
Speed Standard Recovery >500ns > 200mA (Io)
Current - Reverse Leakage @ Vr 5µA @ 200V
Capacitance @ Vr F 30pF @ 4V 1MHz
Mounting Style Through Hole
Package DO-201AD Axial
Manufacturer Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Catalog Standard Diode
Win Source Part Number 084292-1N5402
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian 1N5402 CAD Model

Description

1N5402 General Purpose Rectifier Diode

The 1N5402 is a high-efficiency general-purpose rectifier diode with a peak repetitive reverse voltage of 200V and a continuous forward current rating of 3A. It is ideal for use in general rectification applications where high reliability and efficiency are required.

  • Reverse Voltage: 200V
  • Forward Current: 3A
  • High surge current capability

Applications & Projects

  • Power supplies
  • Battery chargers
  • DC-DC converters

Features & Benefits

  • Durable and reliable performance
  • Cost-effective solution for power rectification
  • Low forward voltage drop
