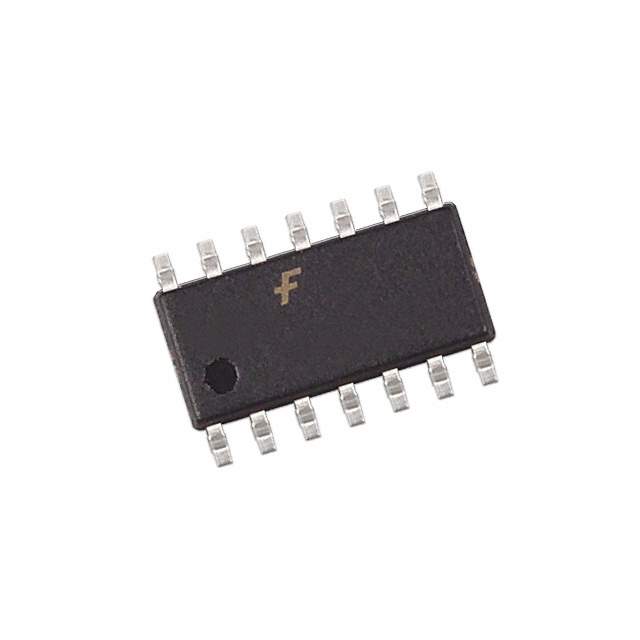

74LVX08SJX Real Image
Same model may have multiple batches, images only for reference.

74LVX08SJX

Part No 74LVX08SJX
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE AND 4CH 2-INP 14-SOIC
Datasheet
74LVX08SJX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Logic Type AND Gate
Number of Circuits 4
Number of Inputs 2
Supply Voltage - Operating 2 V to 3.6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 4mA, 4mA
Logic Level - Low 0.5 V to 0.8 V
Logic Level - High 1.5 V to 2.4 V
Max Propagation Delay @ V, Max CL 10.6ns @ 3.3V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOP
Dimension 14-SOIC (0.209", 5.30mm Width)
Win Source Part Number 1009695-74LVX08SJX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian 74LVX08SJX CAD Model

Description

The Fairchild/ON Semiconductor AND gate integrated circuit is an effective solution for various applications.

  • Number of Circuits: 4
  • Number of Inputs: 2
  • Mounting Type: SMD (SMT)
  • Logic Type: AND Gate
  • Current Output High: 4mA
  • Current Output Low: 4mA
  • Maximum Propagation Delay @ V, Max CL: 10.6ns @ 3.3V, 50pF
  • Current Quiescent (Max): 2μA
  • Logic Level - Low: 0.5 V to 0.8 V
  • Logic Level - High: 1.5 V to 2.4 V
  • Suitable For: Integrated Circuits
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: Balanced
  • Case / Package: 14-SOP
  • Dimension: 14-SOIC (0.209", 5.30mm Width)
  • Package Contains: 2k pcs
