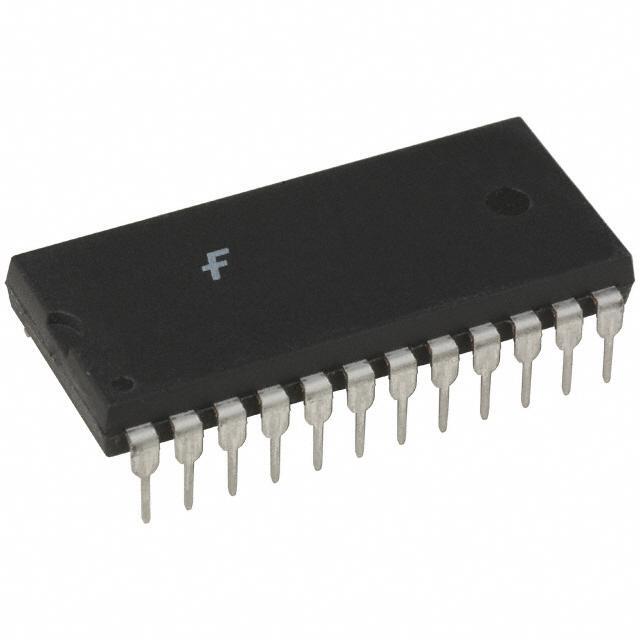

Overview of CD4514BCN

The CD4514BCN is a CMOS BCD to 4-bit decimal decoder/driver, part of the 4000 series, and provides a cost-effective solution for digital display and data conversion projects. This versatile chip handles binary-coded decimal input and produces a 10-line decoded output.

Features and Benefits

• Low power consumption thanks to CMOS technology.
• Wide range of supply voltage from 3V to 15V for varied applications.
• High noise immunity with ESD protection enhances reliability.
• Output drive capability up to 10 LSTTL loads, providing flexibility.
• Direct drive capability for displays or indicator lights.

Applications

• Digital clock displays and timers.
• Consumer electronics like TV and audio systems.
• Automotive dashboard indicators.
• Automation and process control systems.

Due to its robust features and reliable output, the CD4514BCN is an excellent option for professionals seeking efficient BCD to decimal conversion.
