Same model may have multiple batches, images only for reference.

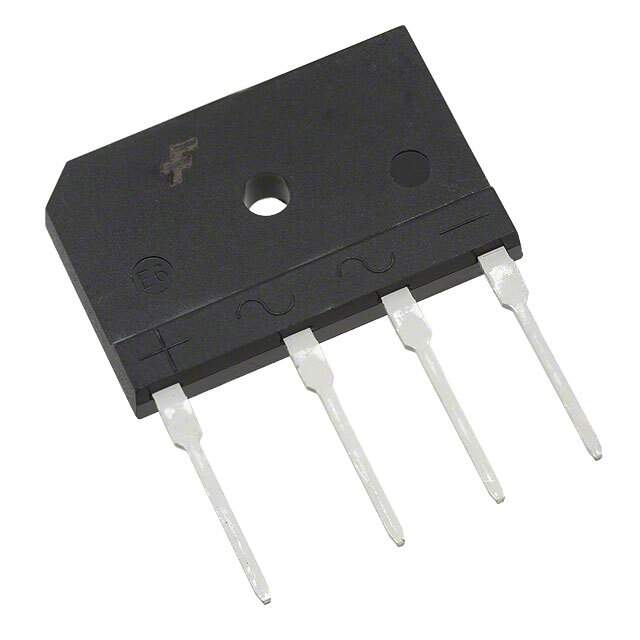

DFB2020 Real Image
Same model may have multiple batches, images only for reference.

DFB2020

Part No DFB2020
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 200V 20A TS-6P
Datasheet
DFB2020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 20A
Current - Reverse Leakage @ Vr 10μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TS-6P
Win Source Part Number 134864-DFB2020
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,200
Ultra Librarian 3D Model Ultra Librarian DFB2020 CAD Model

Description

Description

The DFB2020 is a high-performance component engineered to meet the increasing demands of modern electronic applications. It blends efficiency with durability, ensuring consistent results across different use cases.

Features and Benefits

  • High efficiency under load
  • Excellent durability for extended usage
  • Advanced heat dissipation properties

Applications

  • Home automation systems
  • Wireless communication devices
  • Embedded systems

The DFB2020 is perfect for engineers looking for reliable and efficient solutions in diverse electronic projects.
