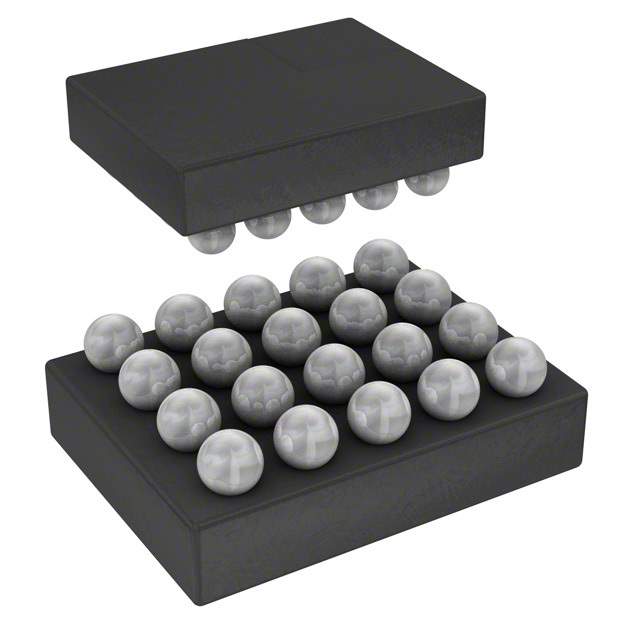

FAN53555UC042X

Name: FAN53555UC042X
Brand: Fairchild/ON Semiconductor
SKU: 768516
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FAN53555UC042X
Manufacturer	Fairchild/ON Semiconductor
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	IC REG BUCK PROG 5A SYNC 20WLCSP / Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.603V to 1.411V 5A 20-Pin WLCSP T/R
Datasheet	FAN53555UC042X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Fairchild/ON Semiconductor
Series	TinyBuck
Packaging	Reel package
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Programmable
Number of Outputs	1
Input Voltage MIN	2.5V
Voltage Input MAX	5.5V
Output Voltage	0.603V
Output Voltage MAX	1.41V
Output Current	5A
Frequency - Switching	2.4MHz
Synchronous Rectifier	Yes
Operating Temperature Range	-40°C ~ 85°C (TA)
Mounting	SMD
Package	20-UFBGA, WLCSP
Manufacturer Package	20-WLCSP
Win Source Part Number	768516-FAN53555UC042X
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	3k pcs
Family Name	FAN53555
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian FAN53555UC042X CAD Model

Alternative Products

Description

The FAN53555UC042X is a TinyBuck Series step-down buck converter manufactured by Fairchild/ON Semiconductor. The package type is 20-UFBGA, WLCSP which is surface mounted.

Programmable Output Type: Yes
Topology: Buck
Switching Frequency: 2.4MHz
Output Configuration: One positive
Output Voltage: 0.603V
Maximum Output Voltage: 1.41V
Input Voltage Range: 2.5V - 5.5V
Synchronous Rectifier: Yes
Output Current: 5A
Halogen-Free: Compliant
Supply and Demand Status: Limited
Estimated EOL Date: 2025
