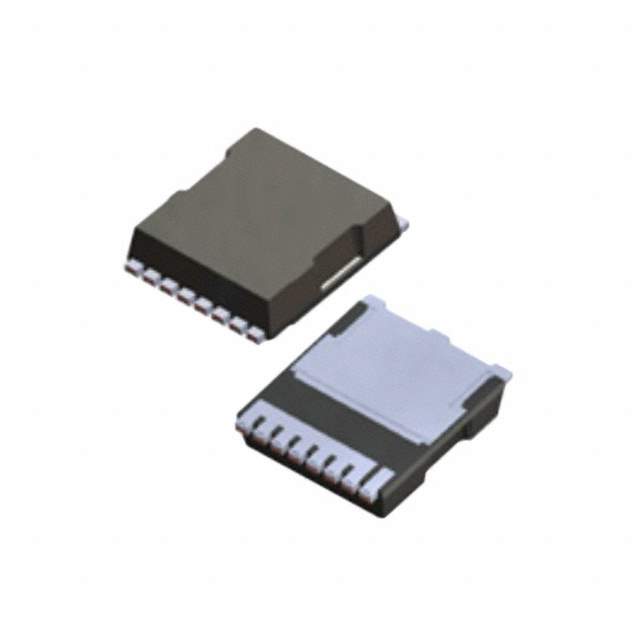

FDBL0090N40 Real Image
Same model may have multiple batches, images only for reference.

FDBL0090N40

Part No FDBL0090N40
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 240A H-PSOF8
Datasheet
FDBL0090N40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 40V
Current - Continuous Drain (Id) @ 25°C 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 188nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 12000pF @ 25V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 357W (Tj)
Rds On (Maximum) @ Id, Vgs 0.9 mOhm @ 80A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package 8-PSOF
Package 8-PowerSFN
Win Source Part Number 766457-FDBL0090N40
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name FDBL0090N40
Introduction Date November 05, 2014
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian FDBL0090N40 CAD Model

Description

The Fairchild/ON Semiconductor FDBL0090N40 is a MOSFET transistor manufactured by Fairchild/ON Semiconductor.

  • Current Rating: 240A @ 25°C
  • Drain-Source Voltage: 40V
  • Maximum Power Dissipation: 357W @ Tj
  • Channel Type: N
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Gate Charge: 188nC @ 10V
  • Input Capacitance: 12,000pF @ 25V
  • Rds On: 0.9 mOhm @ 80A and 10V
  • Drive Voltage: 10V
  • Package: 8-PSOF
  • Popularity: Medium
  • Series: PowerTrench
  • Applications: Discrete Semiconductor Products
