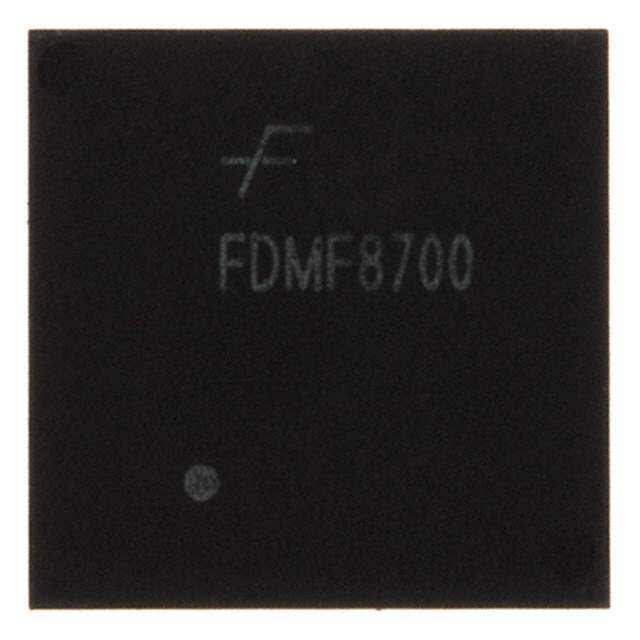

The FDMF8704VTR is an integrated power stage solution from Fairchild/ON Semiconductor, designed for high-frequency synchronous buck DC-DC converters. It incorporates a high-side MOSFET and a low-side MOSFET with an integrated Schottky diode, all within a compact PQFN package.

Applications

• Synchronous Buck DC-DC Converters
• High-current, low-voltage power supplies
• Point-of-Load (POL) regulators
• Notebook computers
• Graphics cards
• Servers
• Networking equipment

Features

• High-performance MOSFETs for superior efficiency
• Integrated Schottky diode for enhanced robustness
• High-frequency operation capability
• Low inductance packaging for reduced ringing and EMI
• Compact PQFN package
• Optimized for synchronous buck converters

Benefits

• Increased Efficiency: High-performance MOSFETs minimize conduction and switching losses, leading to higher overall efficiency.
• Improved Thermal Performance: The package design enhances heat dissipation, allowing for operation at higher power levels.
• Reduced EMI: Low inductance packaging minimizes ringing and electromagnetic interference.
• Simplified Design: Integration of the MOSFETs and Schottky diode simplifies PCB layout and reduces component count.
• Compact Solution: The PQFN package allows for space-saving designs in high-density applications.

Additional Details

The FDMF8704VTR is optimized for use in synchronous buck converters, providing a highly efficient and compact solution for power delivery. The integrated Schottky diode helps to reduce reverse recovery losses, further enhancing efficiency and improving overall system performance. The device is designed to operate at high switching frequencies, enabling the use of smaller passive components and further reducing the overall solution size. The PQFN package offers excellent thermal performance, allowing the device to dissipate heat effectively even at high power levels.

The internal MOSFETs are specifically selected for their low on-resistance and gate charge, minimizing both conduction and switching losses. The device is designed to meet the demanding requirements of modern power supply applications, providing a reliable and efficient solution for high-current, low-voltage power conversion.
