The Fairchild/ON Semiconductor 131057-FDMS0300S is an N-channel MOSFET designed for use in discrete semiconductor products.

• Power Dissipation (Max): 2.5W (Ta), 96W (Tc)
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current (25°C): 31A (Ta), 49A (Tc)
• Gate-Source Threshold Voltage: 3V @ 1mA
• Maximum Gate Charge: 133nC @ 10V
• Maximum Rds On: 1.8 mOhm @ 30A, 10V

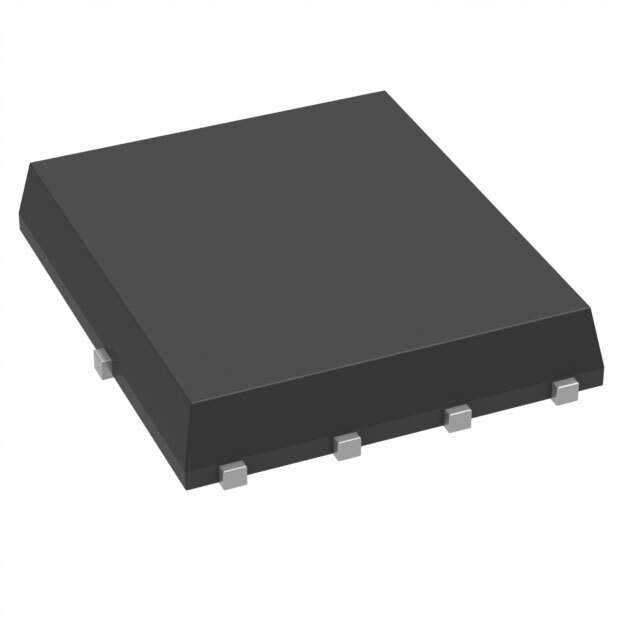

• Package: 8-PQFN (5x6), Power56
• Dimension: 8-PowerTDFN
• Operating Temperature Range: -55°C to 150°C (TJ)
• Supply and Demand: Balance
• Quantity per Package: 3k pcs
