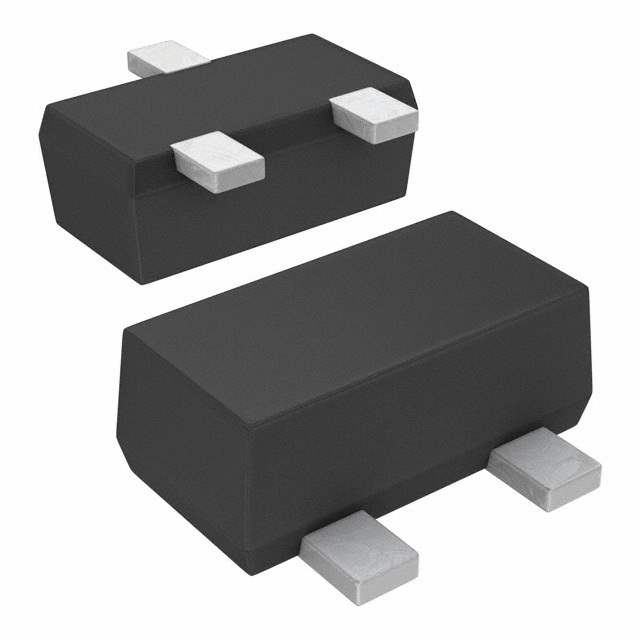

FJY3013R Real Image
Same model may have multiple batches, images only for reference.

FJY3013R

Part No FJY3013R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 200MW SOT523F
Datasheet
FJY3013R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 2.2k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 56 @ 5mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 250MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 098731-FJY3013R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FJY3013R CAD Model

Description

The Fairchild/ON Semiconductor 098731-FJY3013R is a high-frequency NPN transistor that is pre-biased.

  • Base Resistor (R1): 2.2k ohms
  • Emitter-Base Resistor (R2): 47k ohms
  • Maximum Collector Current: 100mA
  • Collector-Emitter Breakdown Voltage: 50V
  • Package: SOT-523F
  • Mounting: SMD (SMT)
  • Transition Frequency: 250MHz
  • Typical Gain (hFE): 56 @ 5mA and 5V
  • Maximum Power Dissipation: 200mW
  • Collector Cut-off Current (Max): 100nA (ICBO)
