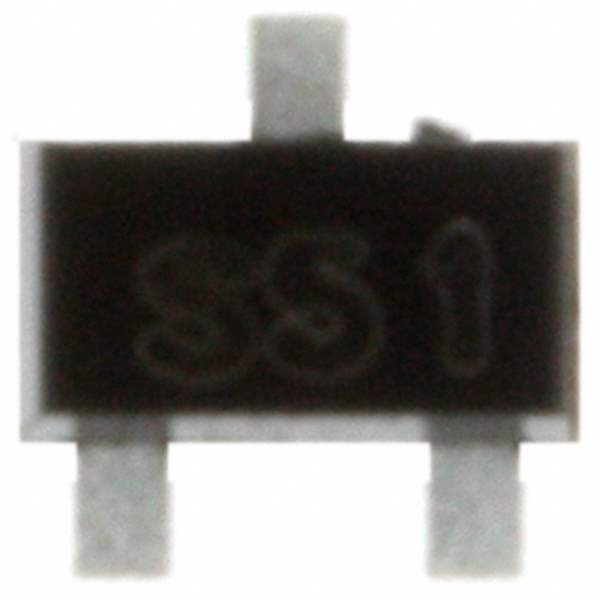

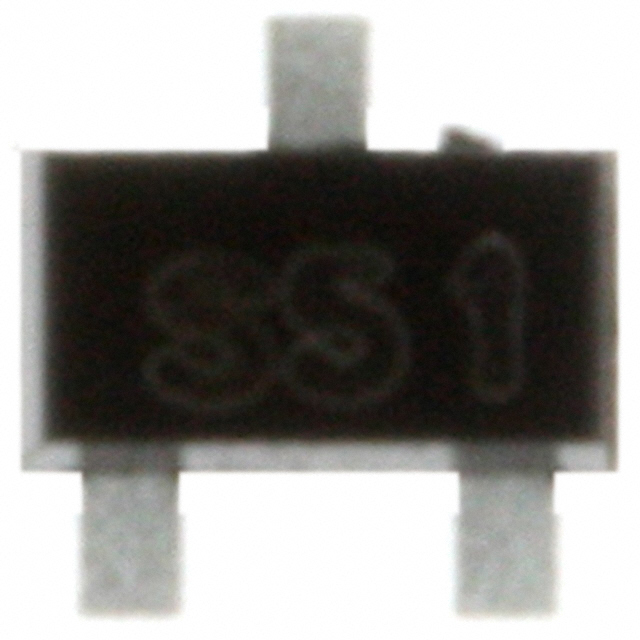

FJY4001R Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FJY4001R

Part No FJY4001R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS PNP 200MW SOT523F
Datasheet
FJY4001R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity PNP - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 4.7k
Resistor - Emitter Base (R2) (Ohms) 4.7k
Typical Gain (hFE) (Min) 20 @ 10mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 200MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 101570-FJY4001R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FJY4001R CAD Model

Description

The Fairchild/ON Semiconductor 138021 is a PNP - Pre-Biased Transistor.

  • Resistor - Base (R1): 4.7k Ohms
  • Resistor - Emitter Base (R2): 4.7k Ohms
  • Category: Discrete Semiconductor Products
  • Status: Obsolete
  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 50V
  • Max Vce (sat): 300mV @ 500μA, 10mA
  • Collector Cut-off Current(Max): 100nA (ICBO)
  • Typical Gain (hFE): 20 @ 10mA, 5V
  • Maximum Power Dissipation: 200mW
  • Mounting: SMD (SMT)
  • Package: SOT-523F
  • Availability: Open Market
  • Supply and Demand: Balanced
