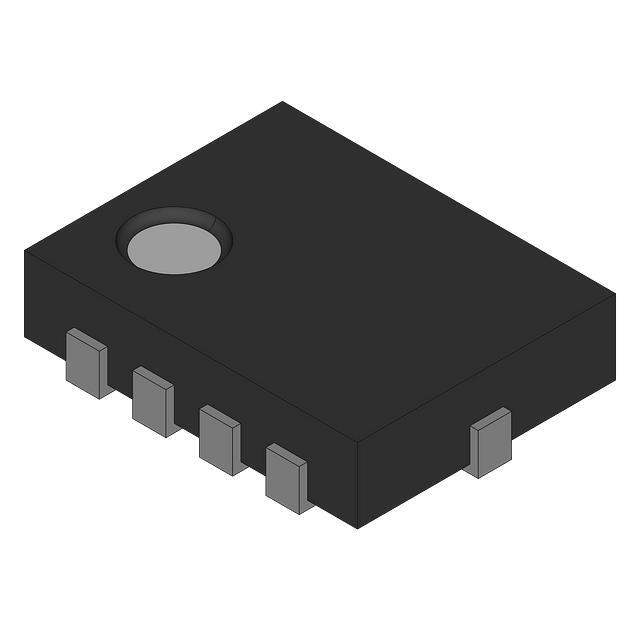

FSA2269TSUMX Real Image
Same model may have multiple batches, images only for reference.

FSA2269TSUMX

Part No FSA2269TSUMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches - Special Purpose
Description IC SWITCH DUAL SPDT 10UMLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Applications Audio
Switch Circuit SPDT
Number of Channels 2
Max On Resistance 300 mOhm (Typ)
Single Supply Voltage (V+) 1.65 V to 4.5 V
-3db Bandwidth 50MHz
Features Break-Before-Make
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-UMLP (1.8x1.4)
Win Source Part Number 016497-FSA2269TSUMX
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FSA2269TSUMX CAD Model

Description

The Fairchild/ON Semiconductor FSA2269TSUMX is a SPDT switch circuit integrated circuit with break-before-make feature. It is designed for audio applications and has a -3db bandwidth of 50MHz.

  • Switch Circuit: SPDT
  • Feature: Break-Before-Make
  • Application: Audio
  • -3db Bandwidth: 50MHz
  • Channels: 2
  • Package: 10-UMLP
  • Max On Resistance: 300 mOhm
  • Single Supply Voltage: 1.65 V to 4.5 V
  • Packaging: 5k pcs per package

The supply and demand status is sufficient.
