Same model may have multiple batches, images only for reference.

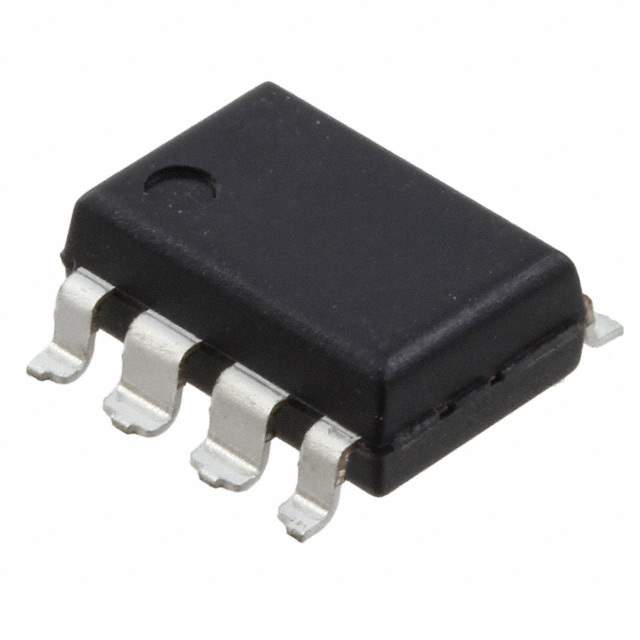

FSDL321L Real Image
Same model may have multiple batches, images only for reference.

FSDL321L

Part No FSDL321L
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM GREEN CM OVP HV 8SOP / AC to DC Pulse Width Modulation Controller
Datasheet
FSDL321L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series FPS
Packaging Tube
Part Status Obsolete(EOL)
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 12V
Supply Voltage 8 V ~ 20 V
Duty Cycle 77%
Frequency - Switching 50kHz
Power (Watts) 17W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Operating Temperature Range -25°C ~ 85°C (TA)
Package 8-SMD, Gull Wing
Manufacturer Package 8-LSOP
Mounting SMD
Win Source Part Number 774787-FSDL321L
Popularity Medium
Supply and Demand Status Limited
Family Name FSDL321
Introduction Date May 21, 2004
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FSDL321L CAD Model

Description

The Fairchild/ON Semiconductor FSDL321L is a Flyback topology integrated circuit.

  • Operating Temperature Range: -25°C to 85°C (TA)
  • Power Rating: 17W
  • Isolation: Internally Isolated
  • Voltage Breakdown: 650V
  • Startup Voltage: 12V
  • Duty Cycle: 77%
  • Switching Frequency: 50kHz
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage
  • Package: 8-SMD, gull-wing
  • Mounting: Surface Mount
  • Series: FPS
  • Status: Obsolete (EOL)
  • Alternative Parts: FSDL321, FSDL321_NL, FSDL321L_NL, ICE3B0365JGAUMA1
