Same model may have multiple batches, images only for reference.

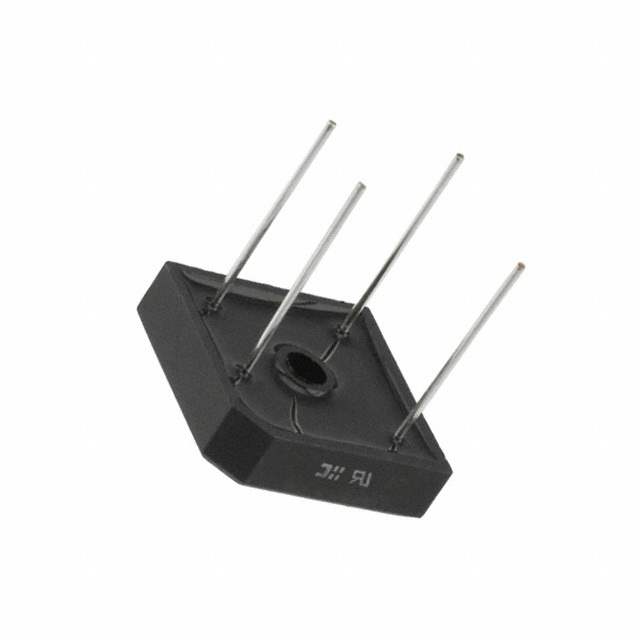

GBPC1501W Real Image
Same model may have multiple batches, images only for reference.

GBPC1501W

Part No GBPC1501W
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 15A 100V GBPC-W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tray
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 7.5A
Current - Reverse Leakage @ Vr 5μA @ 100V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBPC-W
Win Source Part Number 016664-GBPC1501W
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian GBPC1501W CAD Model

Description

The Fairchild/ON Semiconductor GBPC1501W is a single-phase standard diode type IC, ideal for use in discrete semiconductor products.

  • Average Rectified Current: 15A
  • Peak Reverse Voltage: 100V
  • Temperature Range: -55°C to 150°C
  • Package: GBPC-W

This IC is currently in limited supply and demand, with 50 pieces per package.
