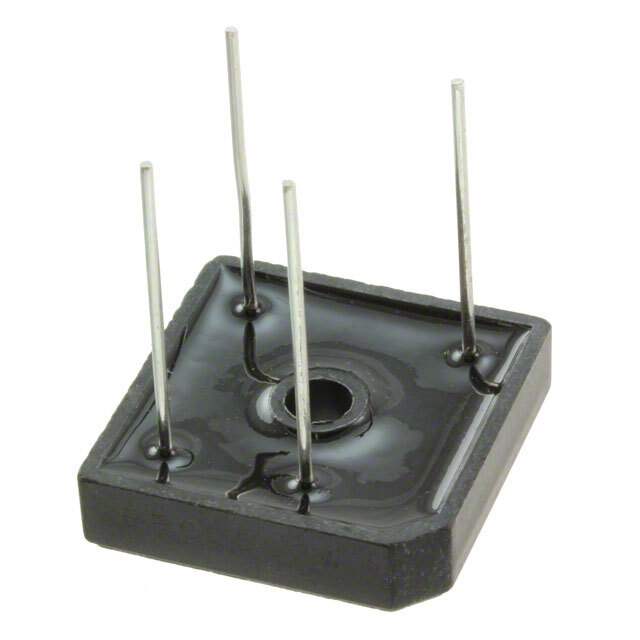

GBPC3510W

Part No GBPC3510W
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description Rectifier Bridge Diode Single 1KV 35A 4-Pin Case GBPC-W Bag / RECT BRIDGE GPP 35A 1000V GBPC-W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tray
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBPC-W
Win Source Part Number 135074-GBPC3510W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Consumer Electronics, Communications & Networking, Industrial
Family Name GBPC3510
Introduction Date March 04, 1999
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian GBPC3510W CAD Model

Description

GBPC3510W from Fairchild/ON Semiconductor is a bridge rectifier used to convert AC input into DC for power supplies, battery chargers, motor drive front ends, industrial control assemblies, and general-purpose rectification stages. Components in this category are commonly selected when designers need a compact, integrated rectification solution instead of building a bridge from discrete diodes. For maintenance teams and design engineers, GBPC3510W may be relevant in legacy repairs, replacement sourcing, or established power conversion platforms where package familiarity and second-source evaluation matter. Lifecycle status for this part is currently information not available, so teams should confirm availability directly with the manufacturer or an authorized source before committing it into new designs. RoHS compliance information is also not available from the provided data. Engineers should verify the latest environmental compliance status, material declarations, and datasheet details through official manufacturer documentation before procurement or production release.
