Same model may have multiple batches, images only for reference.

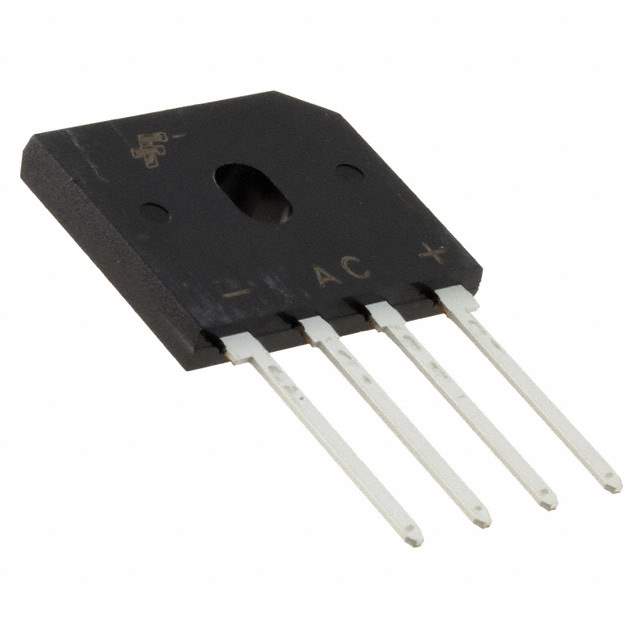

GBU4K Real Image
Same model may have multiple batches, images only for reference.

GBU4K

Part No GBU4K
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 4A 800V GBU
Datasheet
GBU4K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 1040877-GBU4K
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Consumer Electronics, Computers & Computer Peripherals, Audio
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian GBU4K CAD Model

Description

This electronic component is a single-phase standard diode manufactured by Fairchild/ON Semiconductor.

  • Win Source Part Number: 1040877-GBU4K
  • Packaging: Tube/Rail
  • Mounting Type: Through Hole
  • Current Average Rectified: 4A
  • Voltage Forward (Max) @ If: 1V @ 4A
  • Current Reverse Leakage @ Vr: 5μA @ 800V
  • Voltage Peak Reverse (Max): 800V
  • Category: Discrete Semiconductor Products
  • Application Field: Power management, consumer electronics, computers & computer peripherals, and audio
  • Supply and Demand Status: Balanced
  • Quantity per Package: 800
