Same model may have multiple batches, images only for reference.

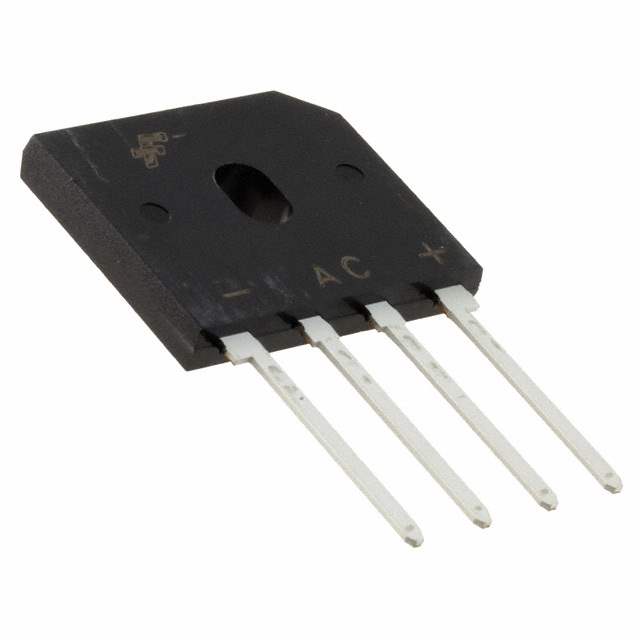

GBU8B Real Image
Same model may have multiple batches, images only for reference.

GBU8B

Part No GBU8B
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 8A 100V GBU
Datasheet
GBU8B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1V @ 8A
Current - Reverse Leakage @ Vr 5μA @ 100V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 142164-GBU8B
Popularity Medium
Supply and Demand Status Limited
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian GBU8B CAD Model

Description

The 142164-GBU8B from Fairchild/ON Semiconductor is a single-phase standard technology diode.

  • Average Rectified Current (Io): 8A
  • Voltage Forward (Vf) (Max) @ If: 1V @ 8A
  • Current Reverse Leakage @ Vr: 5μA @ 100V
  • Voltage Peak Reverse (Max): 100V
  • Popularity: Medium
  • Supply and Demand: Limited
  • Package: 800 pcs
  • Mounting: Through Hole
