Same model may have multiple batches, images only for reference.

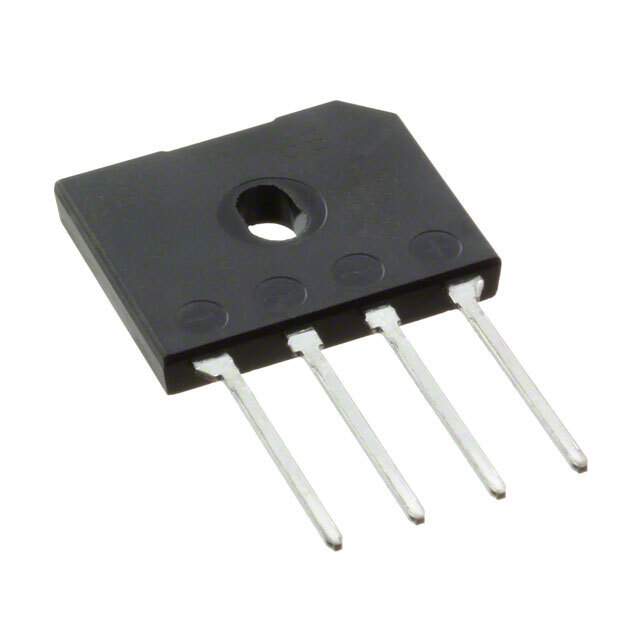

GBU8G Real Image
Same model may have multiple batches, images only for reference.

GBU8G

Part No GBU8G
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER DIODE, 1 PHASE, / Bridge Rectifier Single Phase Standard 400 V Through Hole GBU
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer Fairchild Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 5.6 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 8 A
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package 4-ESIP, GBU
Supplier Device Package GBU
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number FAIFSCGBU8G,2156-GBU8G
Standard Package 1
Win Source Part Number 1324047-GBU8G
Ultra Librarian 3D Model Ultra Librarian GBU8G CAD Model

Description

The Fairchild Semiconductor GBU8G is a single-phase diode bridge rectifier that comes in a through-hole mounting type.

  • Voltage Rating: 400 V
  • Current Rating: 5.6 A
  • Voltage Peak Reverse: 400 V
  • Voltage Forward: 1 V @ 8 A
  • Temperature Range: -50°C ~ 150°C (TJ)
  • Package: GBU
  • Case/Package: 4-ESIP, GBU
