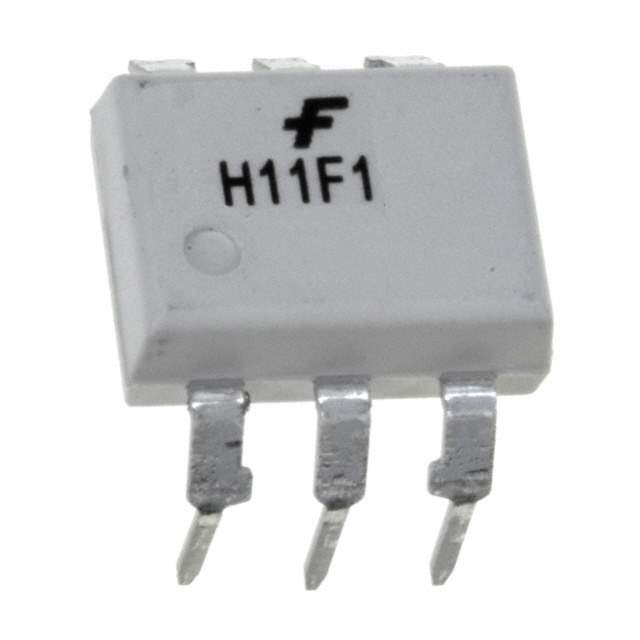

H11F1TVM Real Image
Same model may have multiple batches, images only for reference.

H11F1TVM

Part No H11F1TVM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 7.5KV PHOTO FET 6-DIP
Datasheet
H11F1TVM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 7500Vpk
Switching Turn-On and Turn-Off Time 45μs, 45μs (Max)
Input Type DC
Output Type MOSFET
Maximum Output Voltage 30V
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 1042171-H11F1TVM
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian H11F1TVM CAD Model

Description

The H11F1TVM is an electronic component manufactured by Fairchild/ON Semiconductor. It is an isolator with a 7500Vpk isolation voltage and has a maximum output voltage of 30V.

  • Isolation Voltage: 7500Vpk
  • Maximum Output Voltage: 30V
  • Supply and Demand: balance
  • Package: 6-DIP
  • Status: active
  • Operating Temperature: -40°C to 100°C
  • Manufacturer: Fairchild/ON Semiconductor
