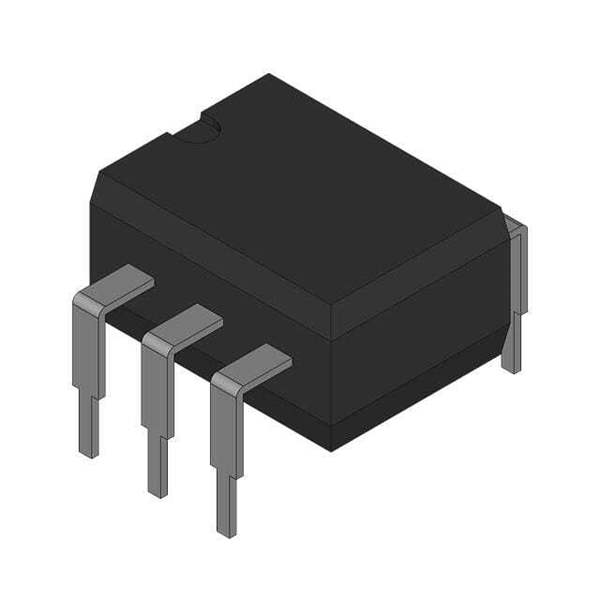

H11G1300W Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

H11G1300W

Part No H11G1300W
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description DARLINGTON OUTPUT OPTOCOUPLER / Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Fairchild Semiconductor
Package Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 1000% @ 10mA
Turn On / Turn Off Time (Typ) 5µs, 100µs
Input Type DC
Output Type Darlington with Base
Voltage - Output (Max) 100V
Voltage - Forward (Vf) (Typ) 1.3V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.400", 10.16mm)
Supplier Device Package 6-DIP
ECCN EAR99
HTSUS 8541.49.8000
Other Names FAIFSCH11G1300W,2156-H11G1300W-FS
Standard Package 1,000
Win Source Part Number 1061513-H11G1300W
Ultra Librarian 3D Model Ultra Librarian H11G1300W CAD Model

Description

The Fairchild Semiconductor H11G1300W is an optoisolator with a Darlington output and base input.

  • Maximum DC Forward Current: 60 mA
  • Typical Forward Voltage: 1.3V
  • Voltage Isolation: 5300Vrms
  • Minimum Current Transfer Ratio: 1000% @ 10mA
  • Mounting: through-hole device
  • Package / Case Size: 6-DIP (0.400", 10.16mm)
  • Operating Temperature Range: -55°C to 100°C
  • Alternative Part: for SFH601-4, 4N25, CNY75C, CNY17-1, and CNY17-4X
