Same model may have multiple batches, images only for reference.

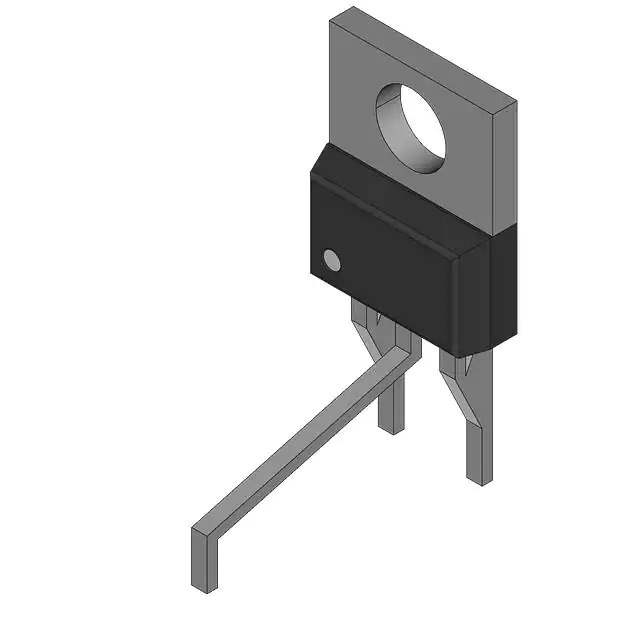

KSA1220YSTU Real Image
Same model may have multiple batches, images only for reference.

KSA1220YSTU

Part No KSA1220YSTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS PNP 120V 1.2A TO126 / Bipolar (BJT) Transistor PNP 120 V 1.2 A 175MHz 1.2 W Through Hole TO-126
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Fairchild/ON Semiconductor
Package Tube
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 1.2 A
Voltage - Collector Emitter Breakdown (Max) 120 V
Vce Saturation (Max) @ Ib, Ic 700mV @ 200mA, 1A
Current - Collector Cutoff (Max) 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 300mA, 5V
Power - Max 1.2 W
Frequency - Transition 175MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126
Standard Package 918 pcs
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 922510-KSA1220YSTU
Ultra Librarian 3D Model Ultra Librarian KSA1220YSTU CAD Model

Description

The 922510-KSA1220YSTU is a PNP bipolar transistor designed for single transistor applications.

  • Power - Max: 1.2 W
  • Voltage - Collector Emitter Breakdown (Max): 120 V
  • Current - Collector (Ic) (Max): 1.2 A
  • Transistor Type: PNP
  • Vce Saturation (Max) @ Ib, Ic: 700mV @ 200mA, 1A
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 300mA, 5V
  • Operating Temperature: Up to 150°C
  • Mounting Type: Through Hole
  • Package / Case: TO-225AA and TO-126-3
  • Manufacturer: Fairchild/ON Semiconductor
  • Status: Obsolete
