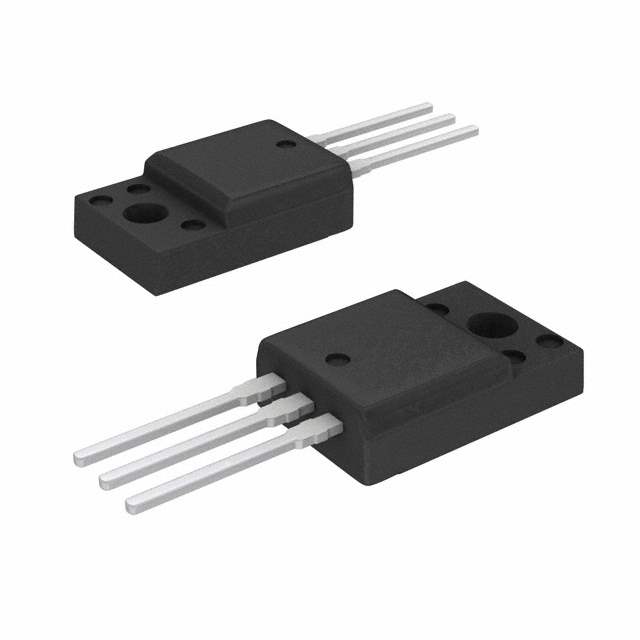

KSD1273PTU Real Image
Same model may have multiple batches, images only for reference.

KSD1273PTU

Part No KSD1273PTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 60V 3A TO-220F
Datasheet
KSD1273PTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 1V @ 50mA, 2A
Collector Cut-off Current(Max) 100μA
Typical Gain (hFE) (Min) 800 @ 500mA, 4V
Maximum Power Dissipation 2W
Frequency - Transition 30MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220F
Win Source Part Number 070513-KSD1273PTU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KSD1273PTU CAD Model

Description

The Fairchild/ON Semiconductor KSD1273PTU is an NPN transistor with a maximum collector-emitter breakdown voltage of 60V and a maximum current collector of 3A.

  • Ideal for: discrete semiconductor products
  • Status: Obsolete (EOL)
  • Package: Tube/rail
  • Mounting: Through-hole
  • Typical Gain (hFE): 800 @ 500mA and 4V
  • Maximum Power Dissipation: 2W
  • Frequency Transition: 30MHz
  • Collector Cut-off Current (Max): 100μA
  • Maximum Vce (sat): 1V @ 50mA, 2A
