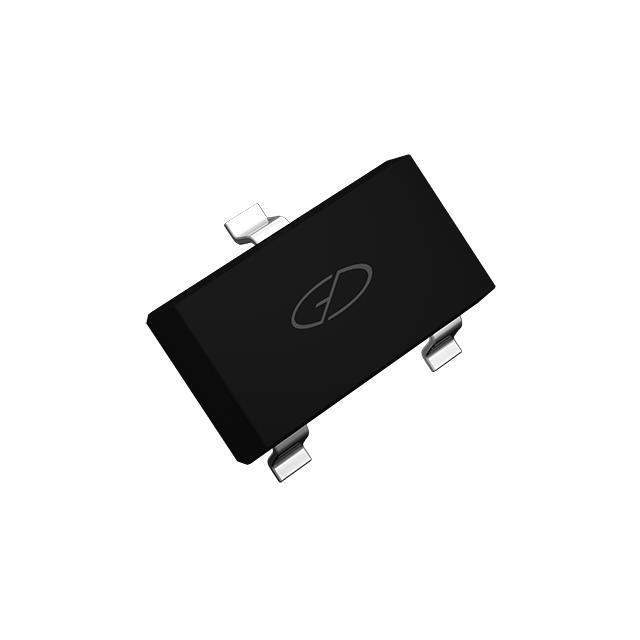

MMBD7000 Real Image
Same model may have multiple batches, images only for reference.

MMBD7000

Part No MMBD7000
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description Rectifier Diode Small Signal Switching 100V 0.2A 4ns 3-Pin SOT-23 T/R / DIODE ARRAY GP 100V 200MA SOT23
Datasheet
MMBD7000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.1V @ 100mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 3μA @ 100V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23-3 (TO-236)
Win Source Part Number 059130-MMBD7000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Family Name MMBD7000
Introduction Date November 04, 1997
ECCN EAR99
Country of Origin China, Japan, Philippines, Republic of Korea, Thailand
Halogen Free Compliant
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian MMBD7000 CAD Model

Description

The ON Semiconductor MMBD7000 is a standard diode that comes in a SOT-23-3 (TO-236) package.

  • Voltage - DC Reverse (Vr) (Max): 100V
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 100mA
  • Reverse Recovery Time (trr): 4ns
  • Current - Leakage @ Vr: 3μA @ 100V
  • Operating Temperature - Junction: -55°C to 150°C
  • Diode Configuration: 1 pair series connection
  • Halogen-Free: Yes
