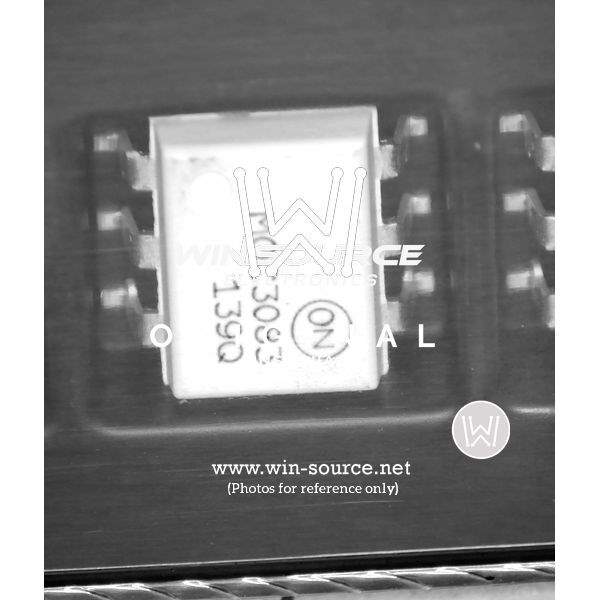

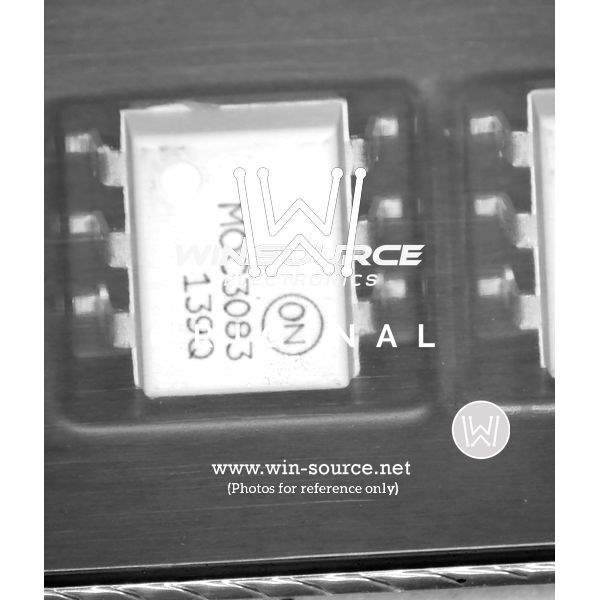

MOC3083SR2M Real Image MOC3083SR2M real image3545 MOC3083SR2M real image3546 MOC3083SR2M real image3547
Same model may have multiple batches, images only for reference.
MOC3083SR2M Real Image MOC3083SR2M real image3545 MOC3083SR2M real image3546 MOC3083SR2M real image3547
MOC3083SR2M Real Image MOC3083SR2M real image3545 MOC3083SR2M real image3546 MOC3083SR2M real image3547
Same model may have multiple batches, images only for reference.

MOC3083SR2M

Part No MOC3083SR2M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6SMD
Datasheet
MOC3083SR2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 800V
Static dV/dt (Min) 600V/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 500μA (Typ)
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals UL
Win Source Part Number 024196-MOC3083SR2M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian MOC3083SR2M CAD Model

Description

The Fairchild/ON Semiconductor 024196-MOC3083SR2M is a single-channel optocoupler with an isolation voltage of 4170Vrms.

  • Current-Hold (Ih): 500μA (Typ)
  • Zero-Crossing Circuit: Yes
  • Static dV/dt (Min): 600V/μs
  • Current-LED Trigger (Ift) (Max): 5mA
  • Voltage-Off State: 800V
  • Forward Voltage: 1.3V
  • Operating Temperature Range: -40°C to 85°C
  • Package: 6-SMD
  • Reel Quantity: 1000 pieces
  • Application: Isolators
