The Fairchild/ON Semiconductor NC7SV08FHX is a 1-circuit AND gate that operates on a current of 24mA. It has a maximum propagation delay of 2.3ns @ 3V and 30pF, and can function @ an operating supply voltage of 0.9 V to 3.6 V.

• Number of Circuits: 1
• Operating Current: 24mA
• Max Propagation Delay: 2.3ns @ 3V and 30pF
• Operating Supply Voltage: 0.9 V to 3.6 V
• Logic Type: AND gate
• Number of Inputs: 2
• Logic Level Low: 0.7 V to 0.8 V
• Logic Level High: 1.6 V to 2 V
• Current Quiescent (max): 0.9μA

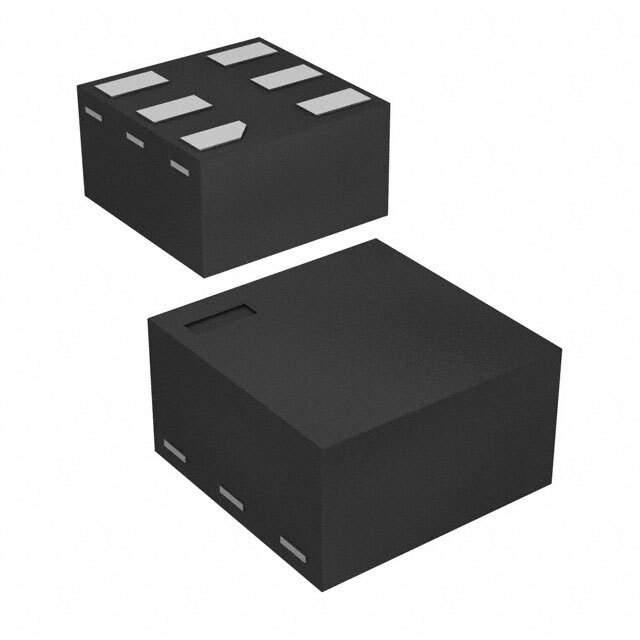

• Mounting: 6-MicroPak2 package
• Category: Integrated Circuits (IC)
• Status: Active
• Package Quantity: 5k pcs
