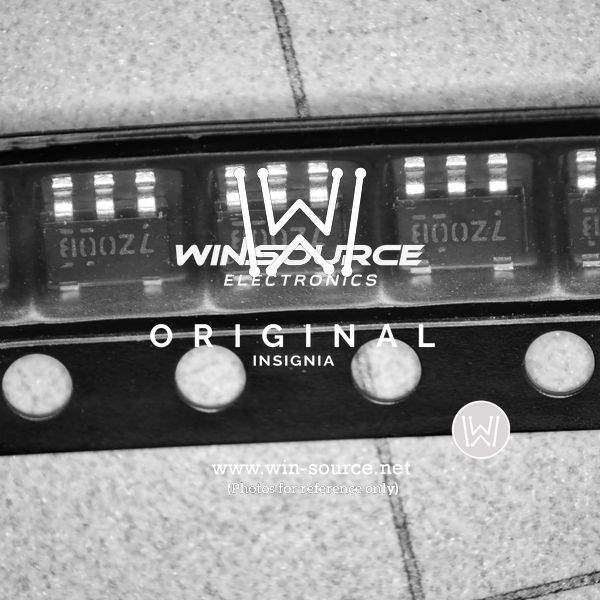

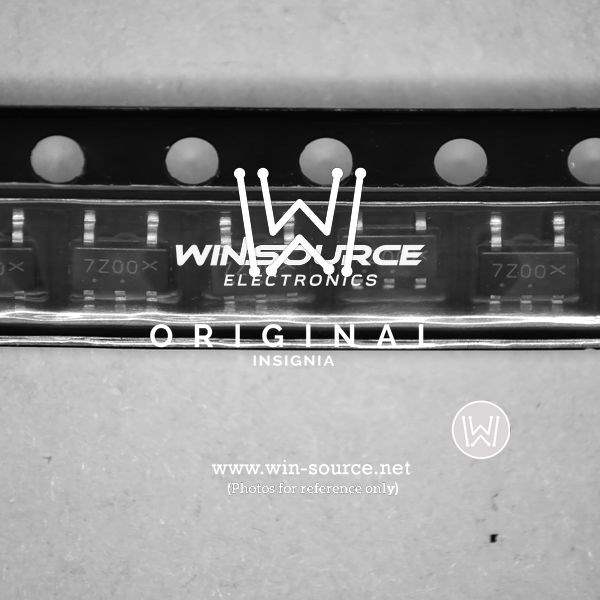

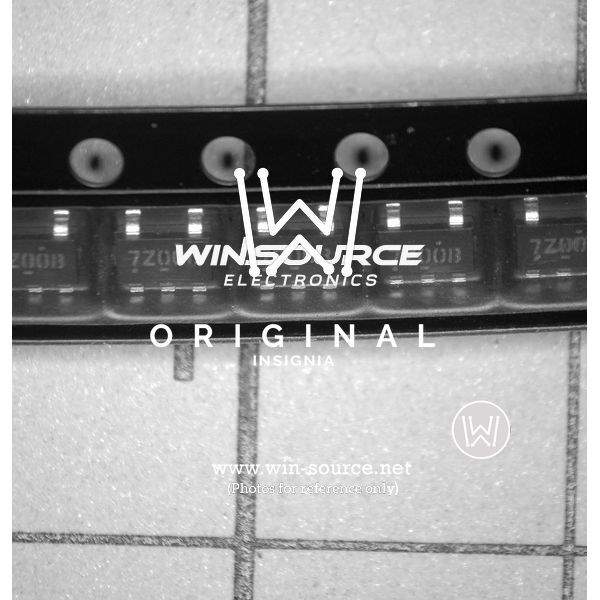

NC7SZ00M5X Real Image NC7SZ00M5X real image3871 NC7SZ00M5X real image3872 NC7SZ00M5X Real Image1 NC7SZ00M5X Real Image2
Same model may have multiple batches, images only for reference.
NC7SZ00M5X Real Image NC7SZ00M5X real image3871 NC7SZ00M5X real image3872 NC7SZ00M5X Real Image1 NC7SZ00M5X Real Image2
NC7SZ00M5X Real Image NC7SZ00M5X real image3871 NC7SZ00M5X real image3872 NC7SZ00M5X Real Image1 NC7SZ00M5X Real Image2
Same model may have multiple batches, images only for reference.

NC7SZ00M5X

Part No NC7SZ00M5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 1CH 2-INP SOT-23-5
Datasheet
NC7SZ00M5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 024796-NC7SZ00M5X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7SZ00M5X CAD Model

Description

The Fairchild/ON Semiconductor NC7SZ00M5X is a NAND gate integrated circuit (IC) that belongs to the Integrated Circuits family.

  • Supply and demand status: sufficient
  • Package: 3k pcs
  • Power consumption: 2μA
  • Propagation delay: 4.3ns
  • Operating voltage: 1.65V to 5.5V
  • Maximum current output: 32mA
  • Package: SOT-23-5
  • Dimension: SC-74A, SOT-753
