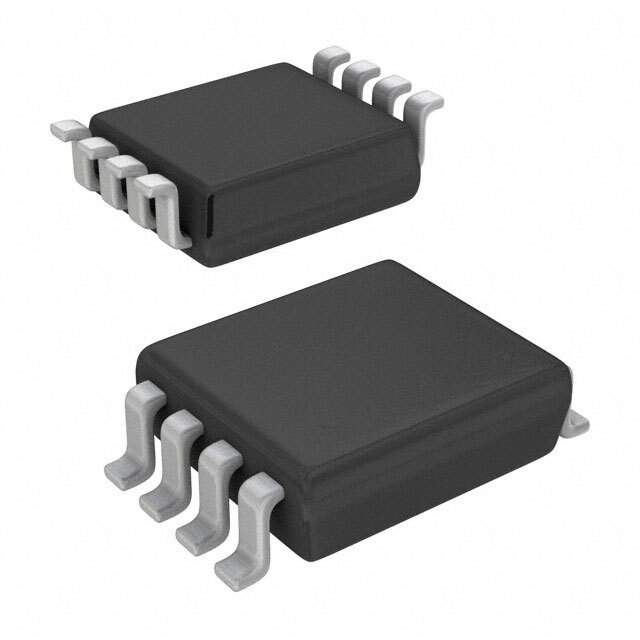

NC7WB66K8X Real Image
Same model may have multiple batches, images only for reference.

NC7WB66K8X

Part No NC7WB66K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPST-NO US8
Datasheet
NC7WB66K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Circuit SPST - NO
Number of Circuits 2
Max On Resistance 10 Ohm
Channel-to-Channel Matching (ΔRon) 200 mOhm
Single Supply Voltage (V+) 1.65 V to 5.5 V
Max Switch Time (Ton,Toff) 3.2ns, 4.1ns
-3db Bandwidth 300MHz
Channel Capacitance(CS off, CD off) 5pF
Max Leakage Current (IS off) 100nA
Crosstalk -70dB @ 10MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package US8
Win Source Part Number 024856-NC7WB66K8X
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WB66K8X CAD Model

Description

The NC7WB66K8X is a SPST switch integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Designed for: use in electronic circuits that require a high-speed switch
  • Single Supply Voltage Range: 1.65V to 5.5V
  • Package: US8
  • Suitable for use in applications such as: audio and video switching
