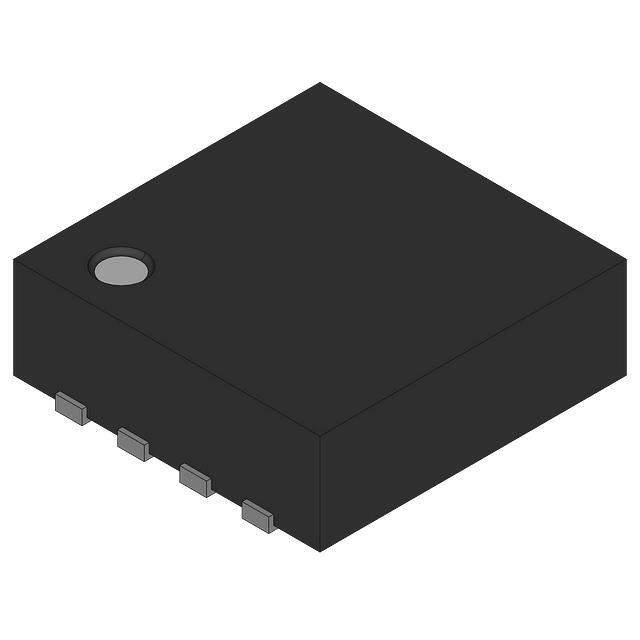

NC7WP02L8X Real Image
Same model may have multiple batches, images only for reference.

NC7WP02L8X

Part No NC7WP02L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NOR 2CH 2-INP 8-MICROPAK
Datasheet
NC7WP02L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NOR Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 0.9 V to 3.6 V
Current - Quiescent (Max) 0.9μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.7 V to 0.9 V
Logic Level - High 1.6 V to 2 V
Max Propagation Delay @ V, Max CL 7ns @ 3.3V, 30pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-MicroPak
Dimension 8-UFQFN
Win Source Part Number 059911-NC7WP02L8X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WP02L8X CAD Model

Description

The Fairchild/ON Semiconductor NOR Gate is a high-performance logic gate that is designed for use in integrated circuits.

  • Number of circuits: number of circuits
  • Inputs: two
  • Maximum propagation delay: 7ns @ 3.3V with a maximum CL of 30pF
  • Quiescent current: 0.9μA
  • Operating Voltage: 0.9 V to 3.6 V
  • Designed for use in: a range of electronic devices, including smartphones, tablets, and laptops
  • Package: 8-MicroPak
  • Dimensions: 8-UFQFN
  • Available in: reel of 5k pcs
