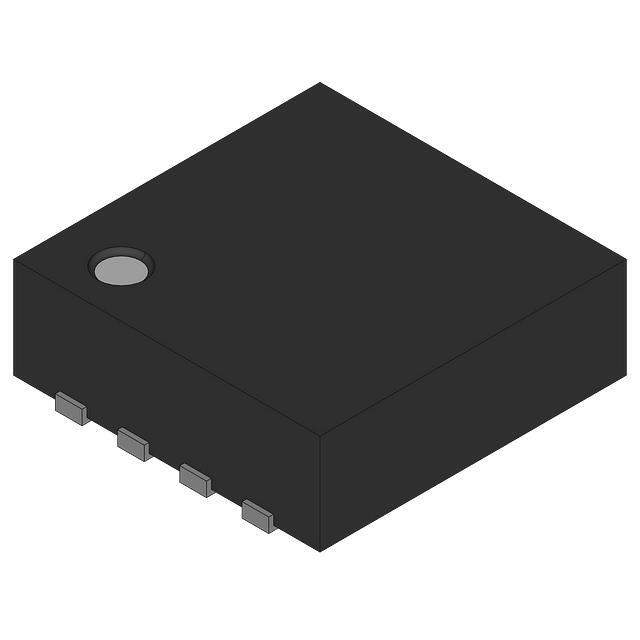

NC7WZ132L8X Real Image
Same model may have multiple batches, images only for reference.

NC7WZ132L8X

Part No NC7WZ132L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description TinyLogic UHS Dual 2-Input NAND Gate with Schmitt Trigger Inputs
Datasheet
NC7WZ132L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series 7WZ
Packaging Reel - TR
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Features Schmitt Trigger
Operating Supply Voltage 1.65 V ~ 5.5 V
Maximum Quiescent Current 1μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.2 V ~ 1.2 V
Logic Level - High 1.4 V ~ 3.6 V
Max Propagation Delay @ V, Max CL 4.5ns @ 5V, 50pF
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Manufacturer Package 8-MicroPak
Package 8-UFQFN
Win Source Part Number 1229590-NC7WZ132L8X
Manufacturer Homepage www.fairchildsemi.com
Family Name NC7WZ132
Introduction Date December 09, 1998
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ132L8X CAD Model

Description

The NC7WZ132L8X is a NAND gate integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Series: 7WZ
  • Packaging: Reel - TR
  • Quiescent Current: 1μA
  • Propagation Delay: 4.5ns @ 5V, 50pF
  • Logic Level - Low: 0.2 V ~ 1.2 V
  • Logic Level - High: 1.4 V ~ 3.6 V
  • Popularity: medium
  • Supply and Demand: balanced
  • Manufacturer Homepage: www.fairchildsemi.com
