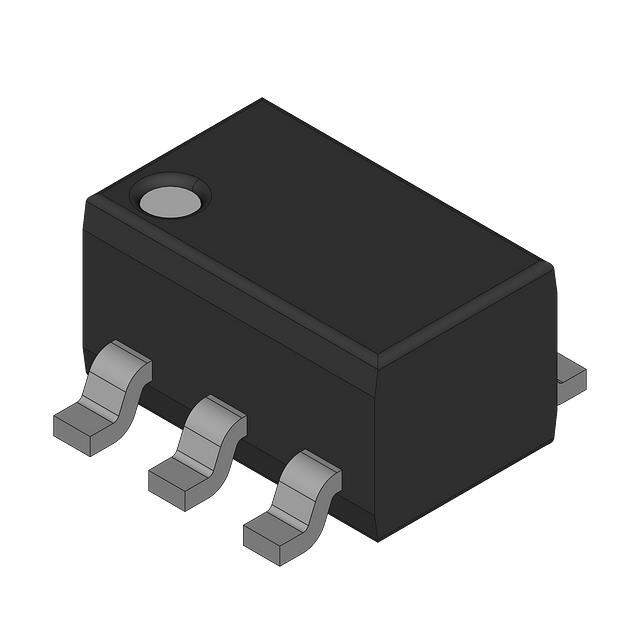

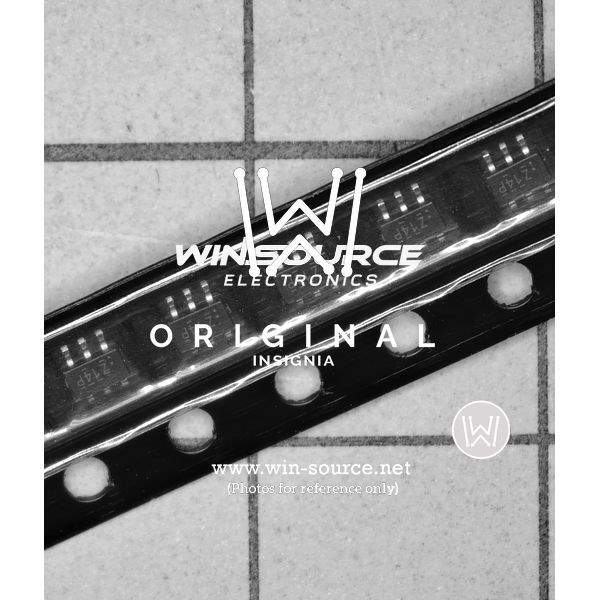

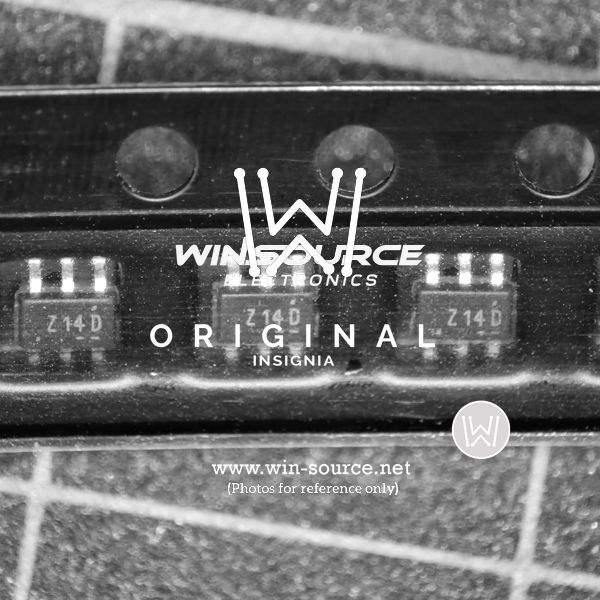

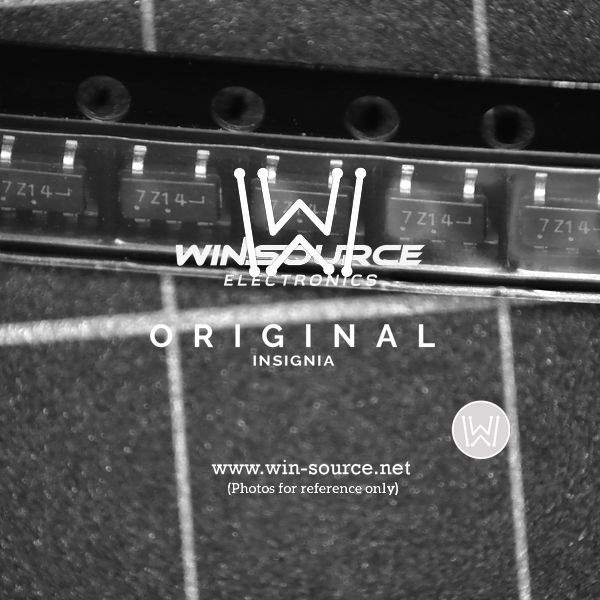

NC7WZ14P6X Real Image NC7WZ14P6X label picture NC7WZ14P6X real image3924 NC7WZ14P6X real image3925 NC7WZ14P6X real image3926 NC7WZ14P6X Real Image1 NC7WZ14P6X Real Image2 NC7WZ14P6X Real Image3 NC7WZ14P6X Real Image4 NC7WZ14P6X Real Image5 NC7WZ14P6X Real Image6 NC7WZ14P6X Real Image7 NC7WZ14P6X Real Image8 NC7WZ14P6X Real Image9 NC7WZ14P6X Real Image10
NC7WZ14P6X Real Image NC7WZ14P6X label picture NC7WZ14P6X real image3924 NC7WZ14P6X real image3925 NC7WZ14P6X real image3926 NC7WZ14P6X Real Image1 NC7WZ14P6X Real Image2 NC7WZ14P6X Real Image3 NC7WZ14P6X Real Image4 NC7WZ14P6X Real Image5 NC7WZ14P6X Real Image6 NC7WZ14P6X Real Image7 NC7WZ14P6X Real Image8 NC7WZ14P6X Real Image9 NC7WZ14P6X Real Image10
Same model may have multiple batches, images only for reference.

NC7WZ14P6X

Part No NC7WZ14P6X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R / IC INVERTER DUAL SCHMITT SC70-6
Datasheet
NC7WZ14P6X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Features Schmitt Trigger
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.2 V to 1.2 V
Logic Level - High 1.4 V to 3.6 V
Max Propagation Delay @ V, Max CL 4.9ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-6
Dimension 6-TSSOP, SC-88, SOT-363
Win Source Part Number 024875-NC7WZ14P6X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Quantity per package 3k pcs
Family Name NC7WZ14
Introduction Date December 10, 1998
ECCN EAR99
Country of Origin China, Malaysia , Philippines, Thailand, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NC7WZ14P6X CAD Model

Description

The NC7WZ14P6X is a Schmitt trigger inverter integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Supply and Demand Status: Sufficient
  • Application: Various electronic devices in the industrial field
  • Package: SC-70-6
  • Maximum Propagation Delay: 4.9ns @ 5V and 50pF
