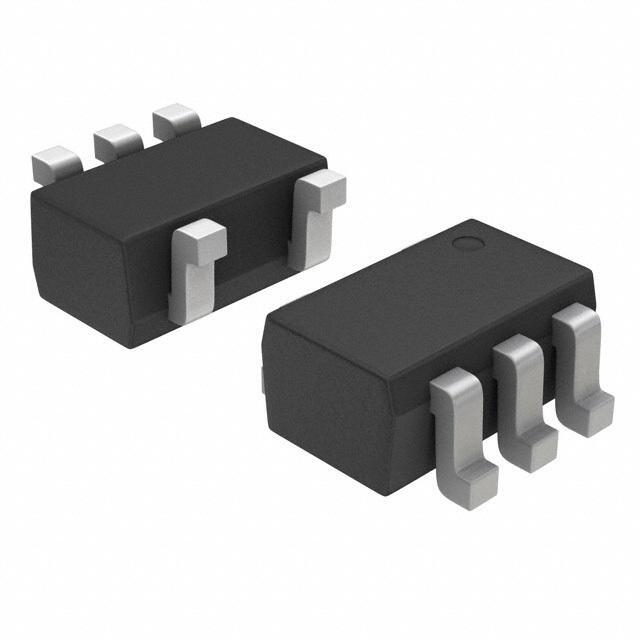

Product Overview: M74VHC1GT08DFT2G from ON Semiconductor

The M74VHC1GT08DFT2G is a high-performance, single 2-input AND gate integrated circuit designed and manufactured by ON Semiconductor. This advanced technology logic gate is part of ON Semiconductor's VHC series, which is renowned for its very high-speed CMOS technology. The device is optimized for use in 3.3V, 5V, and mixed 3.3V/5V systems, providing designers with a versatile component for a wide range of applications.

Key Features

• Logic Type: 2-Input AND Gate
• High-Speed Operation: The M74VHC1GT08DFT2G is capable of operating at high speeds, making it suitable for applications requiring fast signal processing.
• Low Power Dissipation: It has a low power consumption profile, which is critical for power-sensitive designs.
• Power-Down Protection: Equipped with power-down protection on inputs, the device ensures that no excessive current is drawn if the input is at a high voltage level during power down.
• Advanced Design: The CMOS technology used for this IC provides a robust and reliable design, ensuring stable operation under various conditions.
• Compatibility: It is compatible with TTL inputs, allowing it to be used in systems that incorporate both CMOS and TTL logic.
• Package: The device comes in a very small, leadless, thin DFN package with a 2.2 x 2.2 mm body. The small footprint makes it ideal for space-constrained applications.

Applications

The M74VHC1GT08DFT2G is suitable for a myriad of applications that require high-speed logic operations. Its typical applications include:

• High-speed data processing systems
• Portable and battery-powered electronics
• Telecommunication infrastructure
• Computing and storage platforms
• Embedded systems

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The M74VHC1GT08DFT2G is rigorously tested to meet industry standards for performance and reliability, ensuring that it meets the stringent requirements of commercial and industrial applications.

With its high-speed performance, low power consumption, and small package size, the M74VHC1GT08DFT2G from ON Semiconductor is an excellent choice for designers looking to enhance the efficiency and performance of their electronic systems.
