Product Overview: SN74LXCH8T245PWR from Texas Instruments

The SN74LXCH8T245PWR is a state-of-the-art, 8-bit non-inverting bus transceiver designed and manufactured by Texas Instruments (TI). This device is part of TI's advanced signal chain solutions, specifically tailored for applications that require efficient voltage level translation for data bus communication.

Key Features

• Wide Voltage Range: The SN74LXCH8T245PWR operates across a wide voltage range of 1.65V to 5.5V on both the A and B ports. This allows for seamless integration in mixed-voltage systems.
• Bi-directional Interface: With dual-supply voltage level translation, this transceiver can transfer data from a lower voltage bus to a higher voltage bus and vice-versa, making it highly versatile.
• High-Speed Data Transmission: The device supports high-speed data transmission, which is essential for modern digital communication systems.
• Power-Off Protection: Inputs and outputs are equipped with power-off protection, ensuring that the device remains unharmed if either power supply is switched off.
• Low Power Consumption: It is designed for minimal power consumption, which is critical for battery-powered and power-sensitive applications.
• Flow-Through Pinout: The flow-through architecture simplifies PCB layout by easing the routing of data lines.

Applications

The SN74LXCH8T245PWR is ideal for various applications, including:

• Multi-voltage systems that require voltage translation
• Data communication within networking, telecom, and computing where different voltage levels interface is necessary
• Interfacing between microprocessors/microcontrollers and peripherals with different voltage domains
• General-purpose logic applications requiring bidirectional data flow

Quality and Reliability

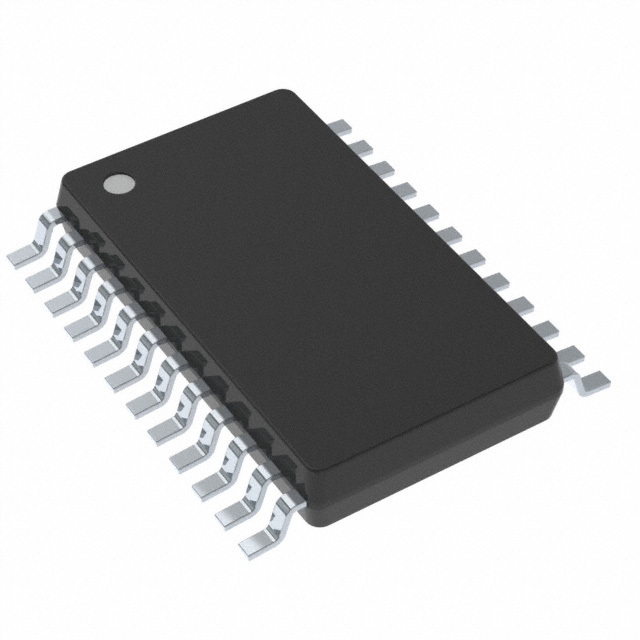

TI's commitment to quality ensures that the SN74LXCH8T245PWR meets the highest standards for reliability and performance. This product is available in a TSSOP (Thin Shrink Small Outline Package) with 24 pins, identified by the PWR suffix, which is suitable for surface-mount technology (SMT).

Ordering and Packaging

When ordering the SN74LXCH8T245PWR, it comes in tape and reel packaging, facilitating automated assembly processes. For detailed specifications, application notes, and support resources, please visit Texas Instruments' official website or contact their customer support.
