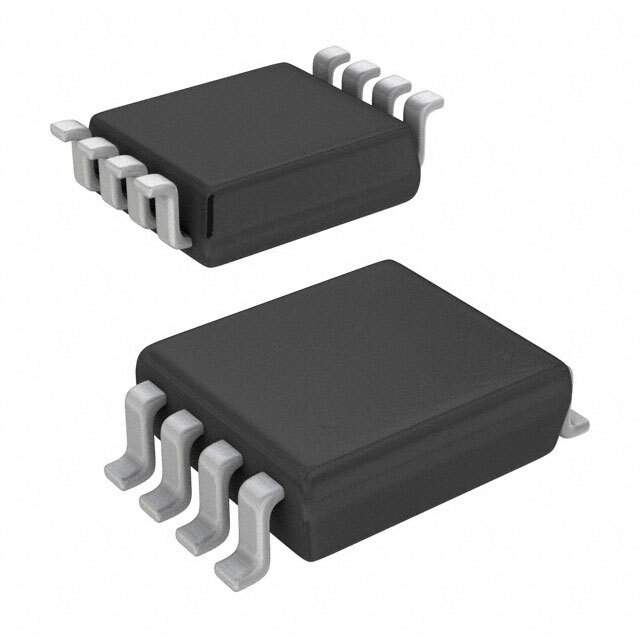

NC7WZ32K8X Real Image NC7WZ32K8X Real Image1 NC7WZ32K8X Real Image2 NC7WZ32K8X Real Image3
NC7WZ32K8X Real Image NC7WZ32K8X Real Image1 NC7WZ32K8X Real Image2 NC7WZ32K8X Real Image3
Same model may have multiple batches, images only for reference.

NC7WZ32K8X

Part No NC7WZ32K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description OR Gate 2-Element 2-IN CMOS 8-Pin US T/R / IC GATE OR 2CH 2-INP US8
Datasheet
NC7WZ32K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type OR Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 3.7ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package US8
Dimension 8-VFSOP (0.091", 2.30mm Width)
Win Source Part Number 024882-NC7WZ32K8X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Quantity per package 3k pcs
Family Name NC7WZ32
Introduction Date April 01, 2000
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NC7WZ32K8X CAD Model

Description

The Fairchild/ON Semiconductor OR gate logic type is a versatile and reliable integrated circuit suitable for use in industrial applications.

  • Circuits: 2
  • Current Output High: 32mA
  • Current Output Low: 32mA
  • Max Propagation Delay: 3.7ns @ 5V, 50pF
  • Package: US8
  • Dimension: 8-VFSOP (0.091", 2.30mm Width)
  • Mounting Style: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Supply Voltage Range: 1.65V to 5.5V
  • Halogen-Free: Compliant
