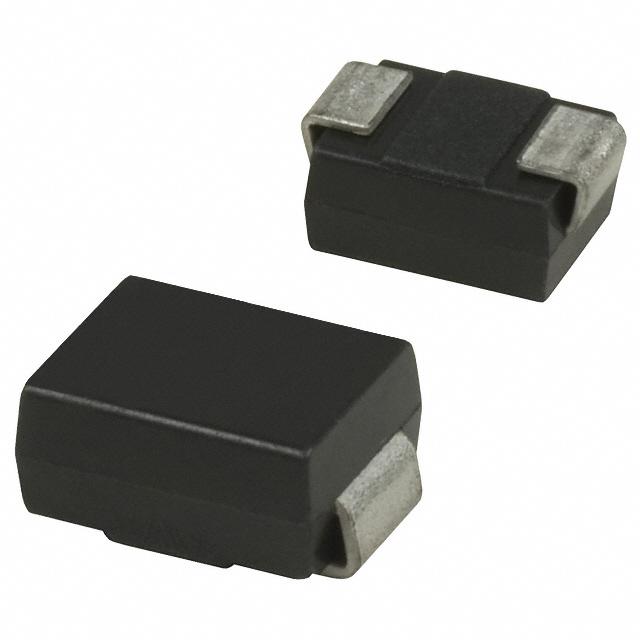

Same model may have multiple batches, images only for reference.
SS22A Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

SS22A

Part No SS22A
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 2A DO214AA
Datasheet
SS22A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 500mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 400μA @ 20V
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 340478-SS22A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SS22A CAD Model

Description

The Fairchild/ON Semiconductor 340478-SS22A is a Schottky diode with a maximum DC reverse voltage of 20V and a maximum forward voltage of 500mV @ 2A.

  • Maximum DC Reverse Voltage: 20V
  • Maximum Forward Voltage: 500mV @ 2A
  • Average Rectified Current: 2A
  • Reverse Leakage Current: 400μA @ 20V
  • Package: DO-214AA (SMB)
  • Operating Temperature: -65°C to 125°C
  • Supply and Demand: Balanced
  • Status: Obsolete (EOL)
