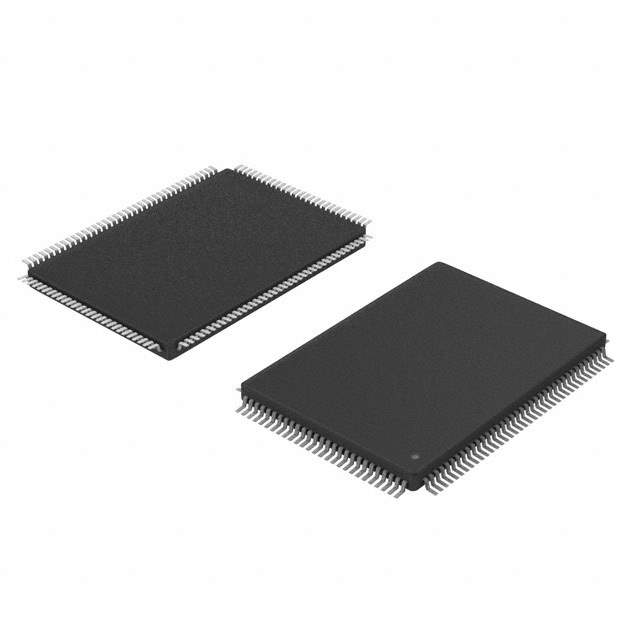

MC56F8345MFGE

Name: MC56F8345MFGE
Brand: Freescale Semiconductor - NXP
SKU: 223116
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	MC56F8345MFGE
Manufacturer	Freescale Semiconductor - NXP
Catalog	Embedded - Microcontrollers
Description	IC MCU 16BIT 128KB FLASH 128LQFP / MCU 16-bit 56800E CISC 128KB Flash 2.5V/3.3V Automotive 128-Pin LQFP Tray
Datasheet	MC56F8345MFGE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	NXP
Packaging	Tray
Status	Active
Core Processor	56800E
Part Core Size	16-Bit
Speed(Frequency)	60MHz
Number of I/O	49
Program Memory Size	128KB (64K x 16)
Program Memory Type	FLASH
Data RAM Size	6K x 16
Supply Voltage - Operating	2.25 V to 3.6 V
Data Converters	A/D 16x12b
Oscillator Type	External
Temperature Range - Operating	-40°C to 125°C (TA)
Case / Package	128-LQFP (14x20)
Win Source Part Number	074534-MC56F8345MFGE
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	MC56F8345
Introduction Date	June 21, 2005
ECCN	3A991.a.2
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian MC56F8345MFGE CAD Model

Alternative Products

Description

The NXP MC56F8345MFGE is a 16-bit digital signal controller designed for high-performance embedded control applications.

Type: 16-bit digital signal controller
Applications: High-performance embedded control
Core Processor: 60MHz
Program Memory Size: 128KB
Data RAM Size: 6K x 16
I/O Ports: 49
Data Converters: A/D 16x12b
Oscillator Type: External
Package: 128-LQFP (14x20)
Temperature Range: -40°C to 125°C (TA)
Halogen-Free: Compliant
Estimated EOL Date: 2028
Usage: Common-used part
Popularity: 43 pct. in the open market
