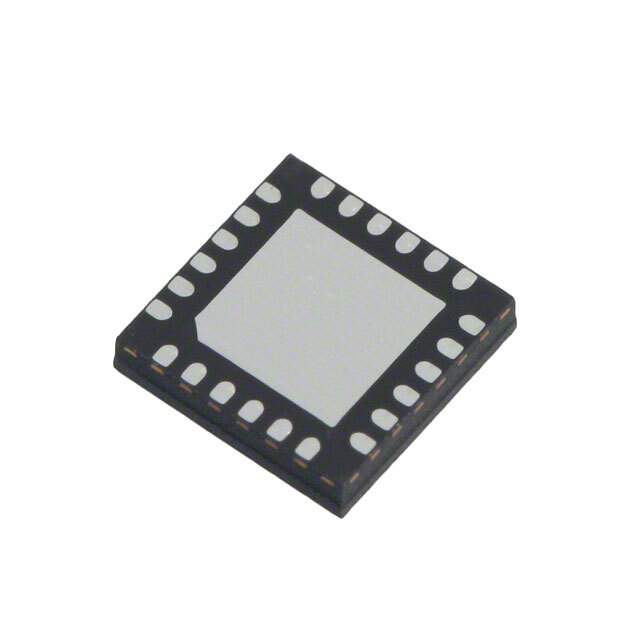

MC9S08QB4CGK Real Image
Same model may have multiple batches, images only for reference.

MC9S08QB4CGK

Part No MC9S08QB4CGK
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 24QFN
Datasheet
MC9S08QB4CGK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 20MHz
Number of I/O 18
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
Data RAM Size 256 x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x12b
Oscillator Type External
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 24-QFN-EP (5x5)
Win Source Part Number 208099-MC9S08QB4CGK
Ultra Librarian 3D Model Ultra Librarian MC9S08QB4CGK CAD Model

Description

The NXP MC9S08QB4CGK is an 8-bit microcontroller with a S08 core processor.

  • I/O: 18
  • Program Memory Size: 4KB (4K x 8)
  • Program Memory Type: FLASH
  • Data Converters: A/D 8x12b
  • External Oscillator Type: External
  • Speed: 20MHz
  • Temperature Range: -40°C to 85°C (TA)
  • Case/Package: 24-QFN-EP (5x5)
  • Supply Voltage: 1.8 V to 3.6 V
