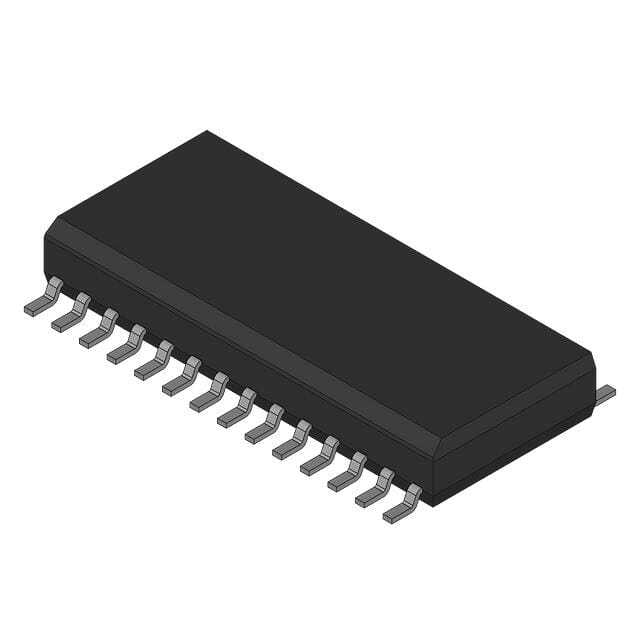

MC9S08SH32MWL NXP
Same model may have multiple batches, images only for reference.

MC9S08SH32MWL

Part No MC9S08SH32MWL
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 32KB FLASH 28SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Series S08
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 23
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number MC9S08
Standard Package 1 pcs
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1078010-MC9S08SH32MWL
Ultra Librarian 3D Model Ultra Librarian MC9S08SH32MWL CAD Model

Description

The S08 981915 is an 8-bit microcontroller from Freescale Semiconductor - NXP.

  • Series: S08
  • Core Processor: S08
  • Speed: 40MHz
  • Package: Bulk
  • Program Memory Size: 32KB (32K x 8)
  • Program Memory Type: FLASH
  • Connectivity Options: I2C, LINbus, SCI, and SPI
  • I/O Pins: 23
  • RAM Size: 1K x 8
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface mount
  • Voltage Supply Range: 2.7V to 5.5V
  • Product Status: Active
