MCIMX257CJM4A Real Image MCIMX257CJM4A Real Image
Same model may have multiple batches, images only for reference.
MCIMX257CJM4A Real Image MCIMX257CJM4A Real Image
MCIMX257CJM4A Real Image MCIMX257CJM4A Real Image
Same model may have multiple batches, images only for reference.

MCIMX257CJM4A

Part No MCIMX257CJM4A
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX25 400MHZ 400MAPBGA
Datasheet
MCIMX257CJM4A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 400MHz
RAM Controllers LPDDR, DDR, DDR2
Graphics Acceleration No
Display & Interface Controllers Keypad, LCD, Touchscreen
Ethernet 10/100 Mbps (1)
USB USB 2.0 + PHY (2)
Voltage - I/O 2.0V, 2.5V, 2.7V, 3.0V, 3.3V
Temperature Range - Operating -40°C to 85°C (TA)
Security Package / Case 400-LFBGA

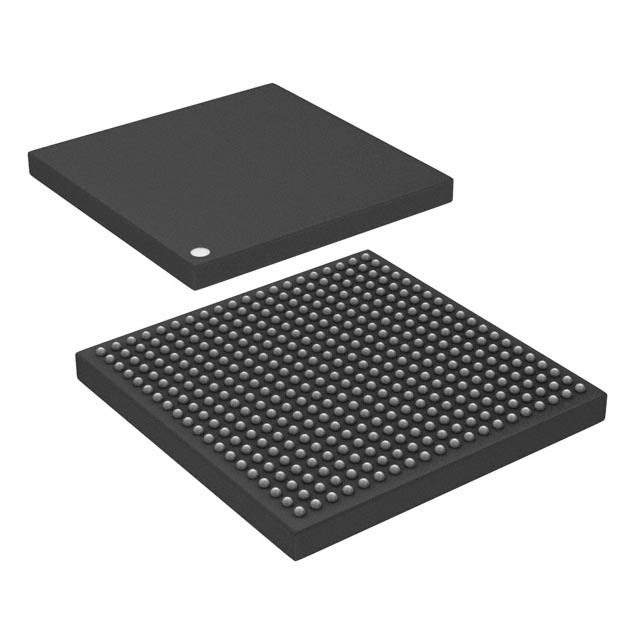

Case / Package 400-MAPBGA (17x17)
Additional Interfaces CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART
Win Source Part Number 085824-MCIMX257CJM4A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MCIMX257
Introduction Date June 25, 2010
ECCN 5A992
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MCIMX257CJM4A CAD Model

Description

The NXP MCIMX257CJM4A is an integrated circuit with a core processor of ARM926EJ-S.

  • Core Processor: ARM926EJ-S
  • Core Count: 1
  • Bus Width: 32-bit
  • Speed: 400MHz
  • Interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART
  • Temperature Range: -40°C to 85°C (TA)
  • Package: 400-MAPBGA (17x17)
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2024
