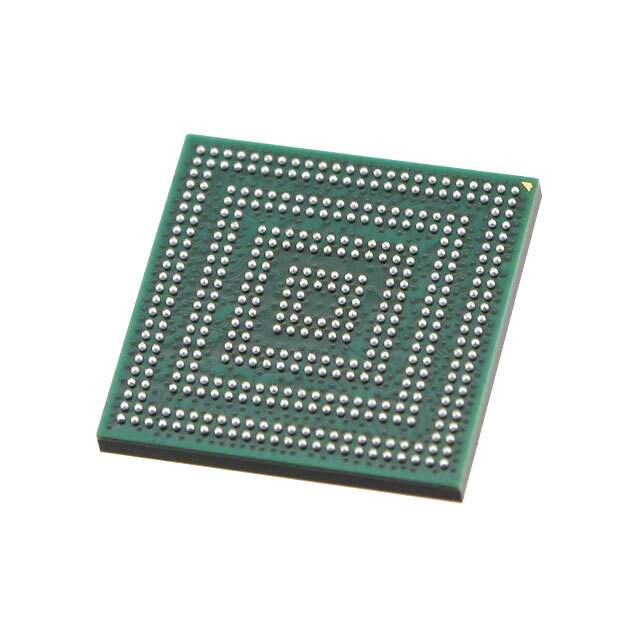

MCIMX508CVK8BR2 Real Image
Same model may have multiple batches, images only for reference.

MCIMX508CVK8BR2

Part No MCIMX508CVK8BR2
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX50 800MHZ 416MAPBGA
Datasheet
MCIMX508CVK8BR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Active
Core Processor ARM Cortex-A8
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 800MHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR, LPDDR2, DDR2
Graphics Acceleration Yes
Display & Interface Controllers EPDC, LCD
Ethernet 10/100 Mbps (1)
USB USB 2.0 + PHY (2)
Voltage - I/O 1.2V, 1.875V, 2.775V, 3.0V
Temperature Range - Operating 0°C to 70°C (TA)
Security Features Boot Security, Cryptography, Secure JTAG
Additional Interfaces 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART
Win Source Part Number 118047-MCIMX508CVK8BR2
Ultra Librarian 3D Model Ultra Librarian MCIMX508CVK8BR2 CAD Model

Description

The NXP 118047-MCIMX508CVK8BR2 is an active electronic component with a core processor of ARM Cortex-A8.

  • Core/Bus Width: 1 core with a 32-bit bus width
  • Co-processors/DSP: Multimedia; NEON SIMD
  • RAM Controllers: LPDDR, LPDDR2, DDR2
  • Graphics Acceleration: Yes
  • Display & Interface Controllers: EPDC, LCD
  • Ethernet: 10/100 Mbps (1)
  • USB: USB 2.0 + PHY (2)
  • Security Features: Boot security, cryptography, secure JTAG
  • Voltage - I/O: 1.2V, 1.875V, 2.775V, 3.0V
  • Additional Interfaces: 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART
  • Temperature Range - Operating: 0°C to 70°C (TA)
  • Speed (Frequency): 800MHz
  • Manufacturer: NXP
