Same model may have multiple batches, images only for reference.

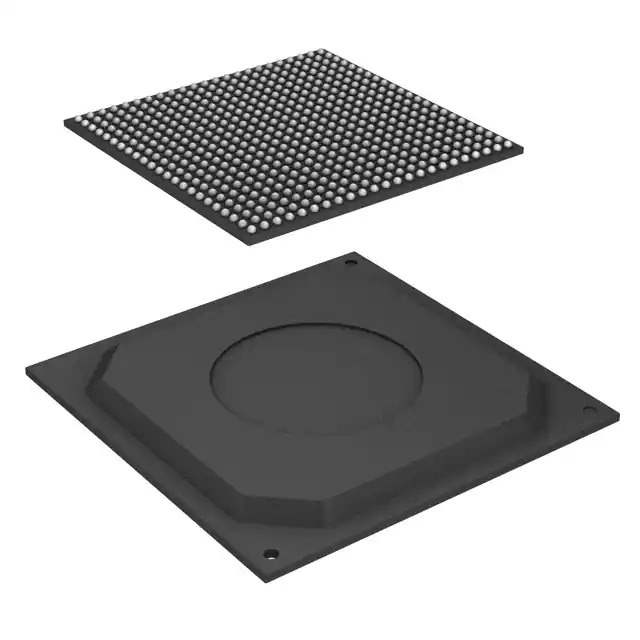

MCIMX536AVV8CR2 Real Image
Same model may have multiple batches, images only for reference.

MCIMX536AVV8CR2

Part No MCIMX536AVV8CR2
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX53 800MHZ 529FBGA
Datasheet
MCIMX536AVV8CR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series i.MX53
Package Bulk
Product Status Active
Core Processor ARM® Cortex®-A8
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 800MHz
Co-Processors/DSP Multimedia; NEON™ SIMD
RAM Controllers DDR2, DDR3, LPDDR2
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100Mbps (1)
SATA SATA 1.5Gbps (1)
USB USB 2.0 (2), USB 2.0 + PHY (1), USB 2.0 OTG + PHY (1)
Voltage - I/O 1.3V, 1.8V, 2.775V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Mounting Type Surface Mount
Package / Case 529-FBGA
Supplier Device Package 529-FBGA (19x19)
Additional Interfaces 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, UART
Base Product Number MCIMX536
Standard Package 1 pcs
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 926534-MCIMX536AVV8CR2
Ultra Librarian 3D Model Ultra Librarian MCIMX536AVV8CR2 CAD Model

Description

The MCIMX536AVV8CR2 is an embedded microprocessor from the i.MX53 series by Freescale Semiconductor - NXP.

  • Core Processor: ARM Cortex-A8
  • Core Count: 1 core
  • Bus Width: 32-bit
  • Speed: 800MHz
  • Features: Multimedia and NEON SIMD co-processors/DSP
  • RAM Controllers: DDR2, DDR3, and LPDDR2
  • Additional Features: Graphics acceleration, display and interface controllers, and Ethernet connectivity
  • Operating Temperature: -40°C to 125°C
