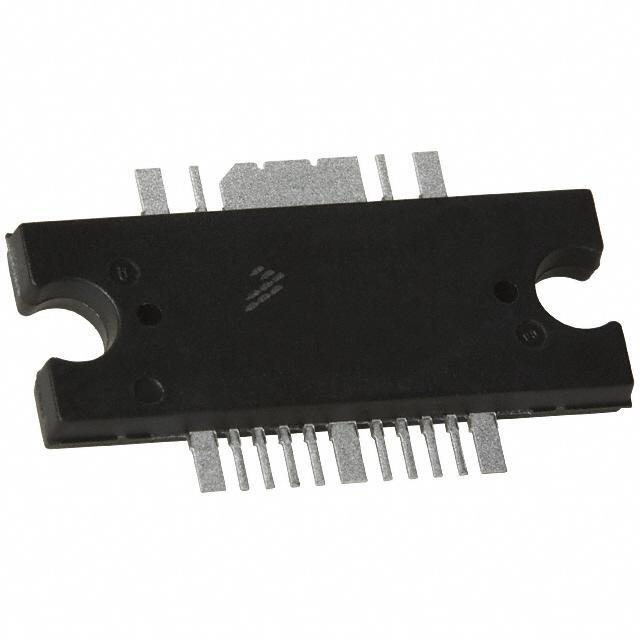

MW7IC2220NBR1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MW7IC2220NBR1

Part No MW7IC2220NBR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 2170MHZ TO-272-16
Datasheet
MW7IC2220NBR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Frequency 2.11GHz to 2.17GHz
P1dB 43dBm (20W)
Gain 31dB
RF Type W-CDMA
Supply Voltage - Operating 28V
Operating Supply Current 300mA
Test Frequency 2.14GHz
Case / Package TO-272 WB-16
Win Source Part Number 059699-MW7IC2220NBR1
Family Name MW7IC2220
Introduction Date June 24, 2008
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MW7IC2220NBR1 CAD Model

Description

The MW7IC2220NBR1 is a high-popularity electronic component manufactured by NXP.

  • Description: It is commonly used in RF/IF and RFID devices that require high-performance transistors.
  • Gain: 31dB
  • P1dB: 43dBm (20W)
  • Frequency Range: 2.11GHz to 2.17GHz
