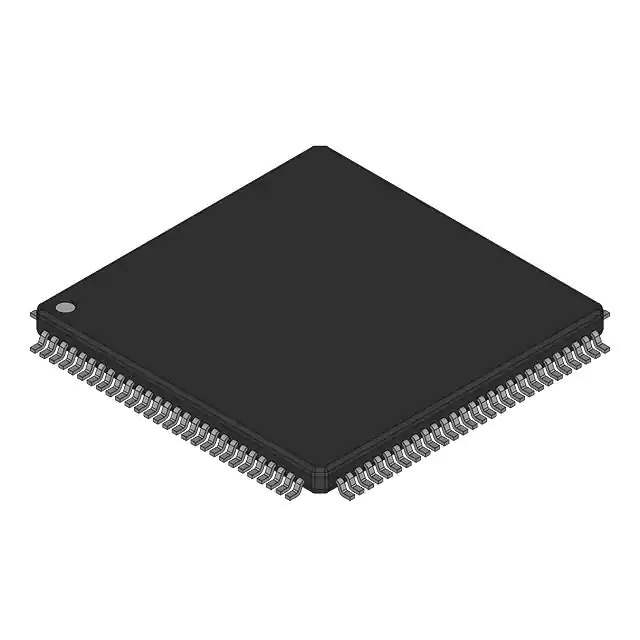

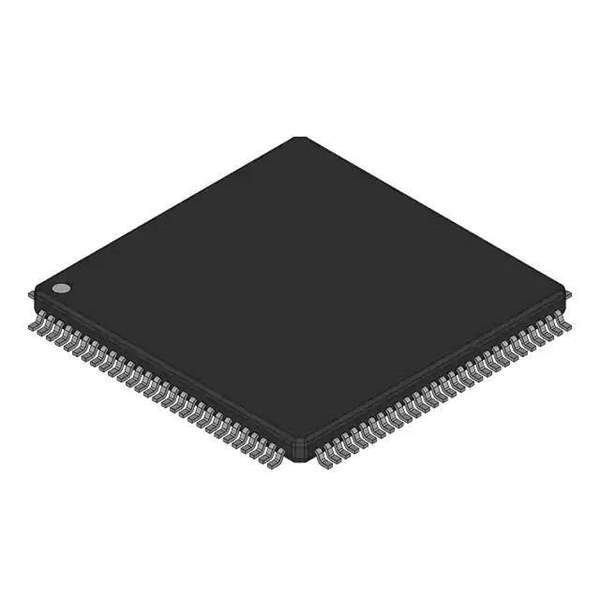

S9S12H256J1VPVER Real Image
Same model may have multiple batches, images only for reference.

S9S12H256J1VPVER

Part No S9S12H256J1VPVER
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description MCU 16 BIT HCS12 HCS12 CISC 256K
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor S12
Core Size 16-Bit
Speed 50MHz
Connectivity CANbus, I²C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals LCD, LVD, POR, PWM, WDT
Number of I/O 85
Program Memory Size 256B (256 x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 6K x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 112-LQFP
Supplier Device Package 112-LQFP (20x20)
Base Product Number S9S12
Standard Package 15 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
HTSUS 0000.00.0000
Win Source Part Number 893423-S9S12H256J1VPVER
Ultra Librarian 3D Model Ultra Librarian S9S12H256J1VPVER CAD Model

Description

The S9S12H256J1VPVER is an embedded microcontroller designed for various applications. It is part of the Embedded - Microcontrollers category of integrated circuits. The S9S12H256J1VPVER features an S12 core processor with a speed of 50MHz. It has a 16-bit core size, making it suitable for handling complex tasks.

  • Core Processor: S12
  • Speed: 50MHz
  • Core Size: 16-bit
  • Connectivity: CANbus, I²C, IrDA, LINbus, SCI, SPI, UART/USART
  • Peripherals: LCD, LVD, POR, PWM, WDT
  • I/O Ports: 85
  • Package: Surface Mount
  • Standard Package Quantity: 15 pieces
  • Operating Temperature: -40°C to 105°C
  • Manufacturer: Freescale Semiconductor - NXP
  • Product Status: Active
