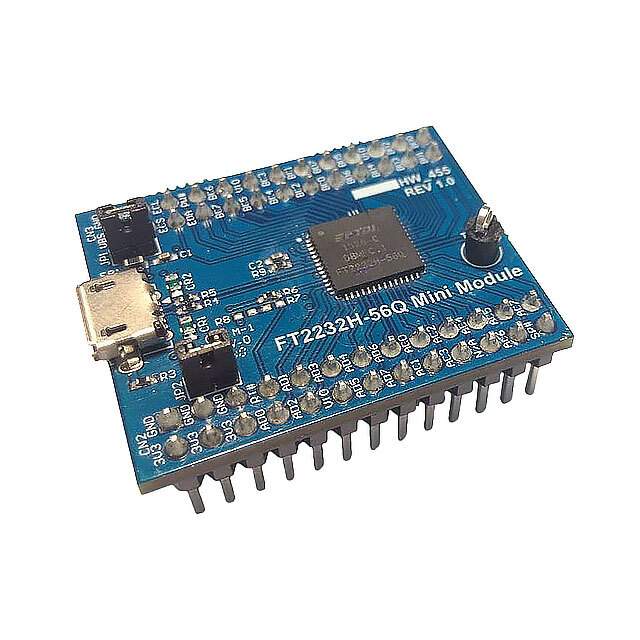

The FT2232H-56Q Mini Module, designed and manufactured by Future Technology Devices International Ltd (FTDI), is a compact and versatile USB-to-serial/MPSSE (Multi-Protocol Synchronous Serial Engine) interface module. This powerful and feature-rich module is based on the FT2232H, which is a dual-channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It is an ideal solution for applications requiring serial communication or multi-protocol synchronous serial engines, such as JTAG, I²C, SPI, or bit-banging.

Key Features:

• Dual High-Speed Channels: The FT2232H-56Q Mini Module offers two independent USB to serial channels, allowing for the simultaneous operation of two different interfaces.
• Multi-Protocol Synchronous Serial Engine (MPSSE): Each channel can be independently configured to use FTDI's MPSSE for communication with serial synchronous protocols.
• High Data Transfer Rates: With USB 2.0 Hi-Speed support, the module can handle data transfer rates of up to 480Mb/s, ensuring fast and efficient communication.
• Flexible Power Options: The module can be powered from the USB bus or an external power supply if required.
• Compact Design: The Mini Module's small form factor makes it perfect for integration into space-constrained applications.
• EEPROM Configuration: An onboard EEPROM allows for the configuration and storage of USB descriptors, which can be customized using FTDI's utilities.
• Comprehensive OS Support: Drivers are available for a wide range of operating systems including Windows, Linux, and Mac OS, ensuring compatibility with most platforms.
• RoHS Compliant: The module complies with RoHS directives, making it suitable for use in environmentally sensitive applications.

Applications:

The FT2232H-56Q Mini Module is suitable for a variety of applications, including but not limited to:

• Industrial Control
• Instrumentation
• Debugging and Programming for FPGA and Microcontrollers
• USB to JTAG / SPI / I²C / UART Interfaces
• USB Instrumentation
• USB to Digital Interface

The FT2232H-56Q Mini Module from FTDI provides a compact, reliable, and easy-to-use solution for adding USB connectivity to a wide range of electronic devices, making it an invaluable tool for developers and engineers alike.
