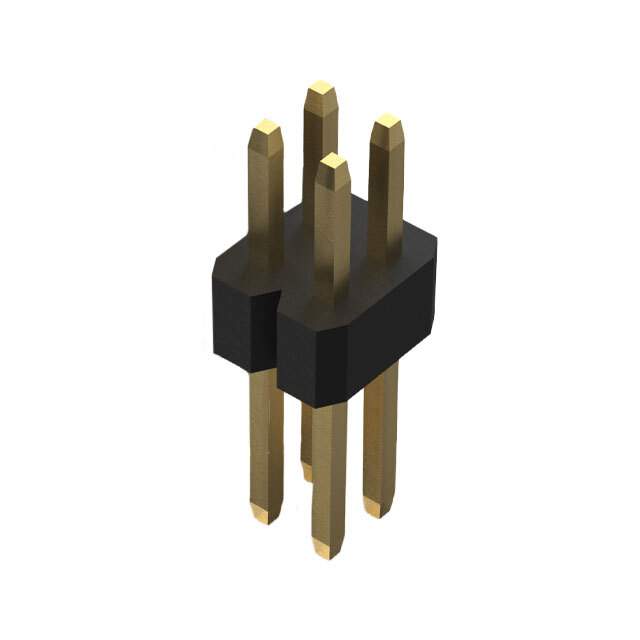

BC035-04-A-0200-0300-L-G Real Image
Same model may have multiple batches, images only for reference.

BC035-04-A-0200-0300-L-G

Part No BC035-04-A-0200-0300-L-G
Manufacturer GCT
Catalog Rectangular Connectors
Description 4W, 1.0MM PITCH PIN HDR, DIL, TH / Connector Header Through Hole 4 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr GCT
Series BC035
Package Box
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.079" (2.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.244" (6.20mm)
Insulation Height 0.047" (1.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC/DC
Contact Finish Thickness - Post Flash
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350022-BC035-04-A-0200-0300-L-G
Ultra Librarian 3D Model Ultra Librarian BC035-04-A-0200-0300-L-G CAD Model

Description

The BC035 series header male pins from GCT are a reliable and durable solution for your rectangular connector needs.

  • Applications: board-to-board
  • Positions: 4
  • Rows: 2
  • Contact Material: copper alloy
  • Voltage Rating: 250VAC/DC
  • Termination: solder
  • Fastening Type: push-pull
  • Insulation Material: liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Contact Finish (Mating): gold with a flash finish thickness
  • Contact Finish (Post): gold with a flash finish thickness
  • Shrouded: unshrouded
  • Mounting Type: through-hole
  • Row Spacing (Mating): 0.039" (1.00mm)
  • Contact Length (Post): 0.118" (3.00mm)
  • Contact Length (Overall): 0.244" (6.20mm)
  • Insulation Height: 0.047" (1.20mm)
  • Contact Shape: square
  • Temperature Range: -40°C to 105°C
