Same model may have multiple batches, images only for reference.

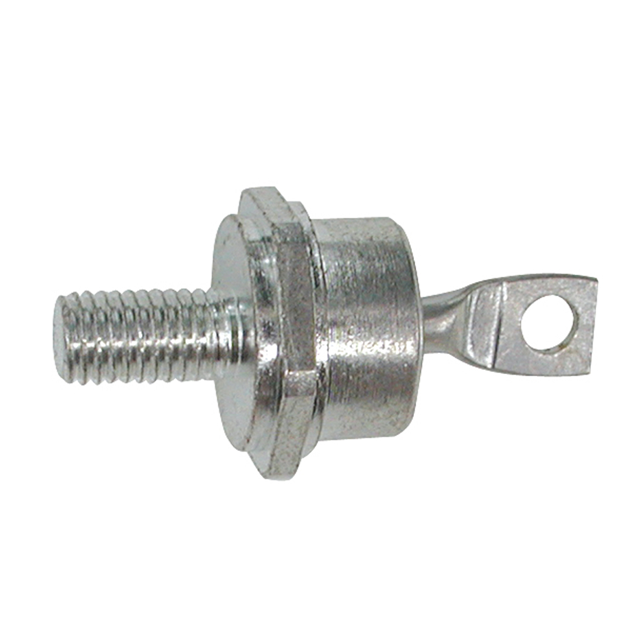

1N1186 Real Image
Same model may have multiple batches, images only for reference.

1N1186

Part No 1N1186
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description Military Silicon Power Rectifier | DIODE GEN PURP 200V 35A DO5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) at If 1.2V at 35A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage at Vr 10μA at 50V
Mounting Style Chassis, Stud Mount
Manufacturer Package DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 190°C
Family Part Number 1N1186
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1121635-1N1186
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian 1N1186 CAD Model

Description

GeneSiC Semiconductor's electronic component with Win Source Part Number 1121635-1N1186 is a standard recovery diode used in power management.

  • Current Average Rectified (Io): 35A
  • Operating Temperature Range: -65°C to 190°C
  • Device Package: DO-5, Stud
  • Manufacturer's Homepage: www.microsemi.com
