Same model may have multiple batches, images only for reference.

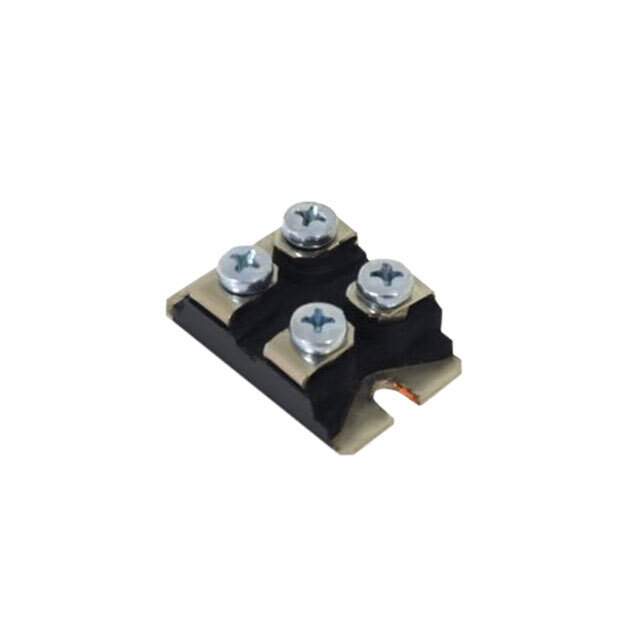

GA100JT12-227 Real Image
Same model may have multiple batches, images only for reference.

GA100JT12-227

Part No GA100JT12-227
Manufacturer GeneSiC Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description TRANS SJT 1200V 160A SOT227
Datasheet
GA100JT12-227 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Tube
Technology SiC (Silicon Carbide Junction Transistor)
Drain Source Voltage 1200V
Current - Continuous Drain (Id) @ 25°C 160A
Input Capacitance (Ciss) (Maximum) @ Vds 14400pF @ 800V
Power Dissipation (Maximum) 535W (Tc)
Rds On (Maximum) @ Id, Vgs 10 mOhm @ 100A
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Chassis Mount
Manufacturer Package SOT-227
Package SOT-227-4, miniBLOC
Win Source Part Number 774970-GA100JT12-227
Popularity Medium
Supply and Demand Status Limited
Quantity per package 10
Ultra Librarian 3D Model Ultra Librarian GA100JT12-227 CAD Model

Description

The GA100JT12-227 is a SiC (Silicon Carbide Junction Transistor) from an unknown manufacturer.

  • Drain-Source Voltage: 1200V
  • Continuous Drain Current (Id): 160A
  • Input Capacitance (Ciss): 14400pF @ 800V
  • Rds On (Max): 10 mOhm @ 100A
  • Package: SOT-227-4, miniBLOC
  • Mounting: Chassis
  • Maximum Power Dissipation: 535W (Tc)
  • Operating Temperature Range: -55°C ~ 175°C (TJ)
