Same model may have multiple batches, images only for reference.

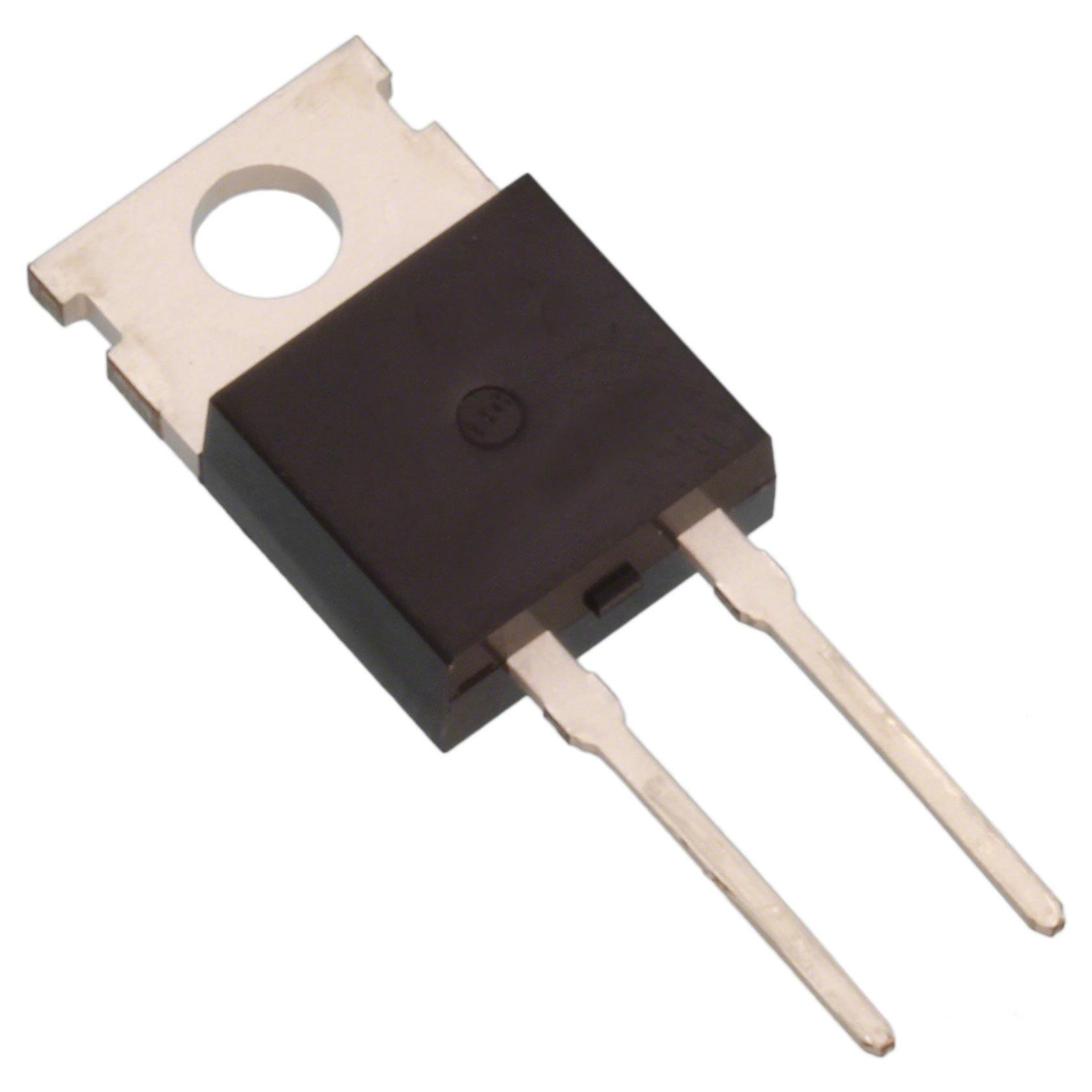

GP2D008A120A Global Power Technologies Group
Same model may have multiple batches, images only for reference.

GP2D008A120A

Part No GP2D008A120A
Manufacturer Global Power Technologies Group
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY DIODE 1200V 8A TO-220-2
Datasheet
GP2D008A120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Global Power Technologies Group
Series Amp+
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 24A (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.8V @ 8A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 20μA @ 1200V
Capacitance @ Vr, F 508pF @ 1V, 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package TO-220-2
Operating Temperature - Junction -50°C ~ 175°C
Win Source Part Number 775067-GP2D008A120A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GP2D008A120A CAD Model

Description

The Global Power Technologies Group GP2D008A120A is a high-quality silicon carbide Schottky diode that is designed for use in a wide range of applications.

  • Maximum Voltage Forward: 1.8V @ 8A
  • Maximum Voltage Reverse: 1200V
