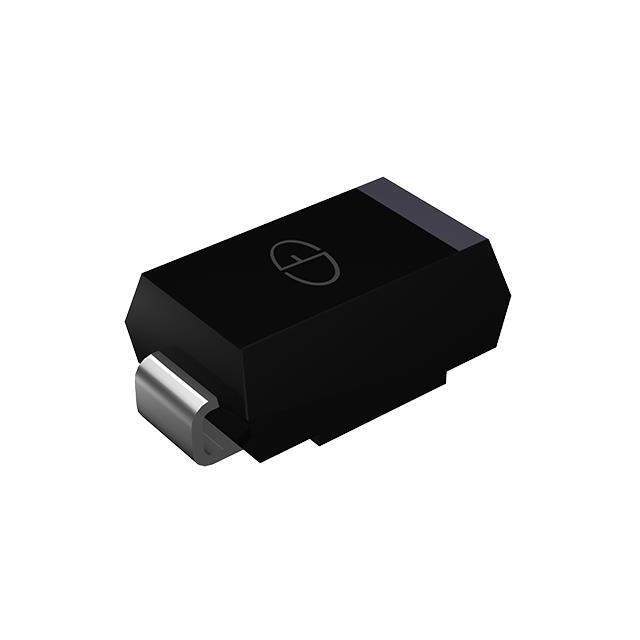

GN1G Real Image1 GN1G Real Image2
Same model may have multiple batches, images only for reference.
GN1G Real Image1 GN1G Real Image2
GN1G Real Image1 GN1G Real Image2
Same model may have multiple batches, images only for reference.

GN1G

Part No GN1G
Manufacturer GOOD-ARK Electronics
Catalog Diodes, Rectifiers - Single
Description RECTIFIER, GENERAL PURPOSE, 1A, / Diode 400 V 1A Surface Mount DO-214AC (SMA)
Datasheet
GN1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr GOOD-ARK Electronics
Series -
Package Tape & Reel
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.8 µs
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Capacitance @ Vr, F 12pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 7,500 pcs
Win Source Part Number 1382165-GN1G
Ultra Librarian 3D Model Ultra Librarian GN1G CAD Model

Description

The Single Diode is a standard recovery rectifier diode designed for various applications.

  • Maximum Reverse Voltage: 400V
  • Average Rectified Current: 1A
  • Forward Voltage: 1V @ 1A
  • Reverse Recovery Time: 1.8 µs
  • Reverse Leakage Current: 5 µA @ 400V
  • Mounting Type: Surface Mountable
  • Package: DO-214AC (SMA)
