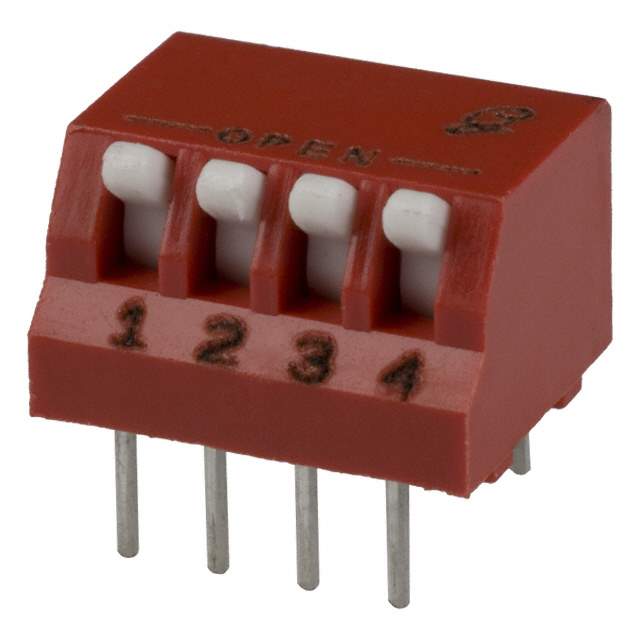

76PSB04ST

Part No 76PSB04ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 150MA 30V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 4
Current Rating 150mA
Voltage Rating 30VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.301" (7.65mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Thermoplastic
Length 0.480" (12.19mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 198293-76PSB04ST
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 76PSB04ST CAD Model

Description

76PSB04ST Product Description

The 76PSB04ST stands out as a reliable choice for electronic enthusiasts and professionals alike. Its versatile nature makes it a staple in various technological applications.

  • Home Automation Systems
  • Embedded Computing Platforms
  • Smart Devices
  • Automotive Electronics

Features and Benefits:

  • High Reliability: Engineered to deliver consistent performance across a range of scenarios.
  • Seamless Compatibility: Works well with existing hardware setups.
  • Energy Efficient: Reduces power usage without compromising output quality.
  • Lightweight Design: Eases installation and maintenance.

Additional Details: With its state-of-the-art engineering, the 76PSB04ST meets international standards for performance and sustainability, ensuring it meets the growing demands of the tech industry.
